99.9% Zinc (Zn) Metal Foil (1400 x 100 x 0.1 mm) for Zinc Ion Battery, Film Deposition and Catalysis - MSE Supplies LLC

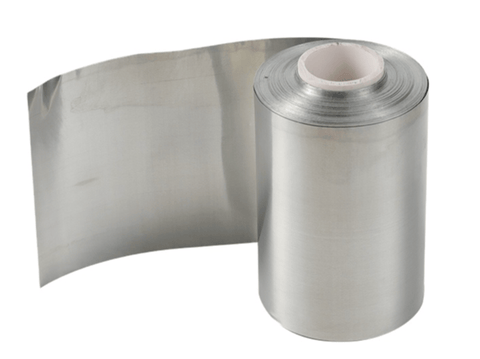

MSE PRO 99.9% Zinc (Zn) Metal Foil (1400 x 100 x 0.1 mm) for Zinc Ion Battery, Film Deposition and Catalysis

$ 109⁹⁵

Product details:

Rechargeable aqueous zinc-ion batteries, one of the most promising multivalent ion batteries, are particularly attractive for large-scale energy storage because of their high safety, environmental friendliness, abundant resources, and high theoretical energy densities. Zinc foil is the key component for zinc ion battery as anode or reference electrode. It also can be used as alternative current collector for lithium ion battery, substrates for solar cell and supercapacitor.

Specifications
Product SKU#	BR0184
Pack Size	Per roll
Material	Zinc ≥ 99.9%
Dimensions	1400x100 mm (Customizable upon request)
Thickness	0.1 mm (Customizable upon request)
Density	7.13 g/cm3
Boiling point	907 °C (lit.)
Melting point	420 °C (lit.)
Net weight	~100 g

References:

1. The electrochemical performance improvement of LiMn₂O₄/Zn based on zinc foil as the current collector and thiourea as an electrolyte additive, J. Power Sources, 2015, 300, 453-459

2. Nanorod–nanosheet hierarchically structured ZnO crystals on zinc foil as flexible photoanodes for dye-sensitized solar cells, Nanoscale, 2013,5, 1894-1901

3. An Aqueous Zinc‐Ion Battery Based on Copper Hexacyanoferrate, ChemSusChem, 8: 481-485

4. Zinc–Organic Battery with a Wide Operation‐Temperature Window from −70 to 150 °C, Angew. Chem. Int. Ed. 2020, 59, 14577

5. A High‐Rate and Stable Quasi‐Solid‐State Zinc‐Ion Battery with Novel 2D Layered Zinc Orthovanadate Array, Adv. Mater. 2018, 30, 1803181
