50 ml D56 X H68 Y-Stabilized Zirconia Milling Jar for Planetary Mills - MSE Supplies LLC

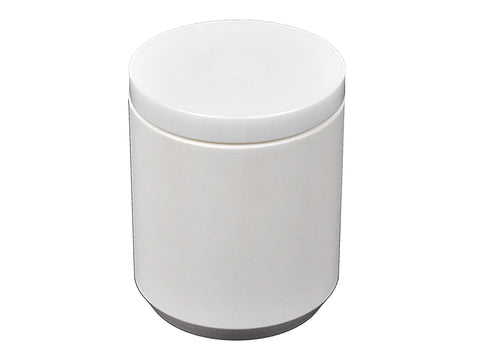

MSE PRO 50 ml D56 X H68 Y-Stabilized Zirconia Milling Jar for Planetary Mills

  • $ 55595

General Description of 50 ml D56 X H68 Y-stabilized Zirconia Milling Jar

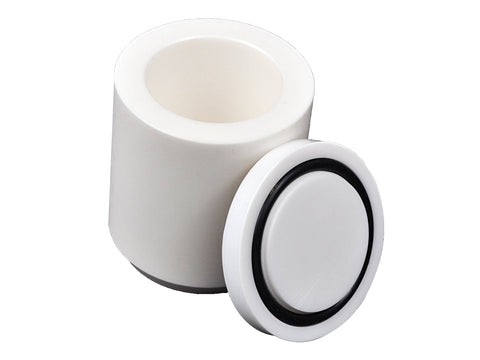

Each jar set includes grinding jar, jar lid, rubber sealing gasket, and a milling media set (BA0125) specifically designed for this jar.

SKU: JA0204

Not compatible with 0.2L planetary mill. Compatible with 0.4L or larger size planetary mills.

Features of 50ml D56 X H68 Y-stabilized Zirconia Milling Jar

  • Cost-effective, low wear and long lifetime

  • High specific gravity, high milling efficiency

  • Chemical resistant to acid and solvents

  • Smooth, easy to clean, minimum wearing to the equipment

  • Excellent toughness, high impact resistance, no broken beads

  • Mainly used for planetary ball mill machines

  • Material : Y stabilized Zirconium Oxide -ZrO2

Jar Volume: 50 ml, 56 mm diameter and 68 mm height, inner diameter - 38 mm

  • Max Loading Capacity : 2/3 capacity of the grinding jar
  • Density : 6.06 g/cm3
  • Color : ivory white
  • Shape : cylindrical
  • Dimensions: Height 68 mm, OD 55 mm, ID 38 mm, Wall Thickness 17 mm
  • Hardness : >89 HRA
  • Abrasion Resistance : very good
  • Suitable for : fibrous, abrasive samples
  • Max Working Temperature : 320 oC
  • Attachment : lid and rubber sealing gasket
  • Grind Balls : zirconium oxide balls (should be ordered separately)
  • Grind Ball Sizes : 1 mm - 50mm beads are available
