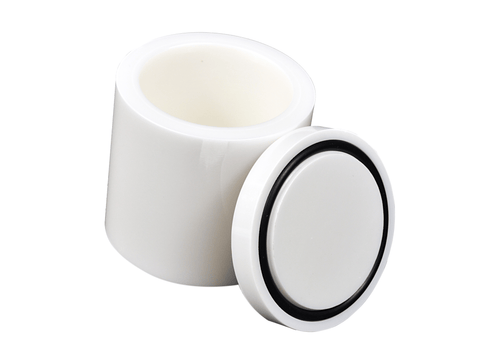

MSE PRO 100 ml D65 X H76 Y-Stabilized Zirconia Milling Jar for Planetary Mills

SKU: JA0203

  • $ 68995

Features of 100 ml D65 X H76 mm Y-Stabilized Zirconia Milling Jar for Planetary Mills

Each jar set includes grinding jar, jar lid, rubber sealing gasket and a set of YSZ milling balls with combination of different sizes for optimal milling.

  • Cost-effective, low wear and long lifetime

  • High specific gravity, high milling efficiency

  • Chemical resistant to acid and solvents

  • Smooth, easy to clean, minimum wearing to the equipment

  • Excellent toughness, high impact resistance, no broken beads

  • Mainly used for planetary ball mill machines

Planetary Jar Size Chart


      Item No.: JA0203

      Material: Y stabilized Zirconium Oxide -ZrO2

      Jar Volume:100 ml

      Dimensions: Height 76 mm, OD 65 mm, ID 50 mm, Wall Thickness 15 mm

      Max Loading Capacity: 2/3 capacity of the grinding jar

      Density: 6.06 g/cm3

      Color: ivory white

      Shape: cylindrical

      Hardness: >89 HRA

      Abrasion Resistance: very good

      Suitable for: fibrous, abrasive samples

      Max Working Temperature: 320°C

      Attachment: lid and rubber sealing gasket

      Grind Balls: zirconium oxide balls

      Grind Ball Sizes: 0.1 mm - 50mm beads are available


      Special Features:

      A stainless steel sleeve can be added to convert to rotary mill (roller mill) application. please contact us for specific requirement.
