LONGER BQ50-1J Mini Peristaltic Pump
SKU: BQ50-1J_WX10-14

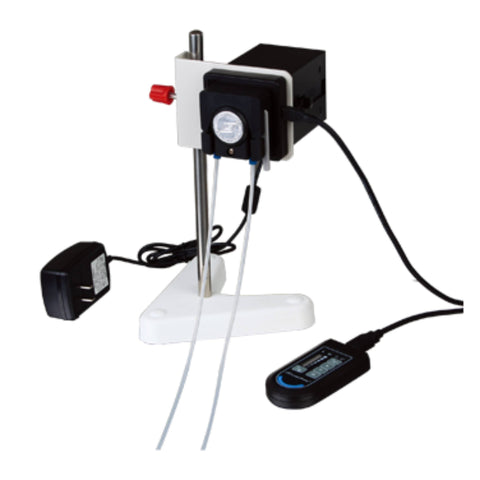

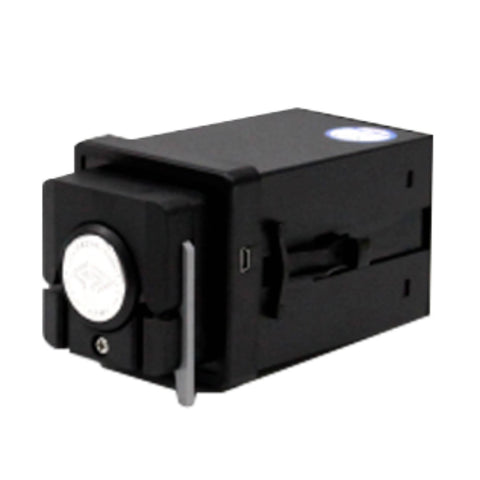

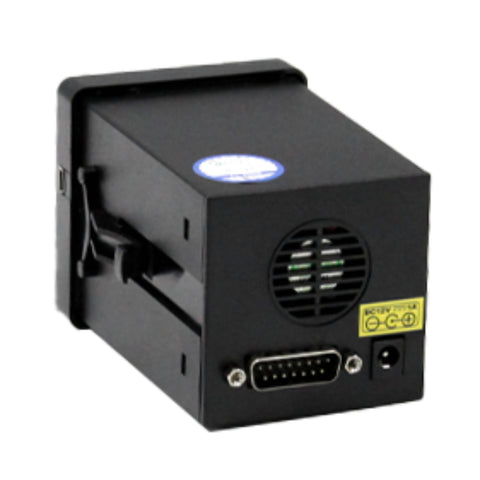

LONGER BQ50-1J Mini Peristaltic Pump
BQ50-1J has small flow rate and compact size, which can be mounted on your equipment rack or panel. The pump provides flow rates from 0.0002mL/min to 20mL/min. And the pump could be controlled through hand-held remote controller. White and black casing are available.
Product Features
- BQ50-1J is designed for laboratory use
- It can provide a flow rate ranging from 0.006 to 20 (ml/min).
- The speed can be adjusted via a handheld controller, or controlled externally through an analog external control interface or RS485 communication interface.
- Depending on the material of the pump head and the number of rollers, the following pump heads can be installed: WX10-14-A, WX10-14-B, WX10-18-A, WX10-18-C.
- It features power-off memory, is compact in size, lightweight.
- CE marking.
Product Parameters
|
Parameters |
BQ50-1J |
|
Max Flow Rate (Single |
20mL/min |
|
Speed Range |
1rpm- 50 rpm CW/CCW |
|
Speed Resolution |
Manual control: 1rpm; External control: 0.1 rpm |
|
Display |
LED indicator light for speed |
|
Work Mode |
Continuous mode |
|
Control Mode |
Keypad control; External control; Communication control |
|
Calibration |
N/A |
|
External Control |
Control function: start/stop; running direction; speed |
|
Communication Control |
RS485 |
|
Dimensions(L x W x H) |
Drive+pump head:135×72×72(mm); Hand held |
|
Power Supply |
Pump:DC12V/10W; power adapter: 90V-260V/10W 50/60Hz |
|
Operating |
0℃-40℃ |
|
Relative Humidity |
＜80% |
|
IP Rating |
IP31 |
|
Weight |
0.5Kg |
Technical Specifications
|
Speed Range |
1rpm-50rpm, CW/CCW |
|
|
Speed Resolution |
Mannual Control |
1rpm |
|
External Control |
0.1rpm |
|
|
Control Mode |
Hand-held controller, external signal control, and commnucation control |
|
|
Display |
Hand-held controller displays speed and runing status |
|
|
External Control |
Start/Stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional) |
|
|
Communication |
RS485 |
|
|
Power-off Memory |
Return to previous status when powered on |
|
|
Prime |
For fast filling and emptying at full speed |
|
|
Dimension (L×W×H) |
Drive + Pump Head |
135mm x 72mm x72mm |
|
Hand-held Controller |
105mm x 50mm x 16mm |
|
|
Power Supply |
Pump |
DC 12V/10W |
|
Adaptor |
AC 90V-260V/10W |
|
|
Operating Temperature |
0℃~40°℃ |
|
|
Humidity |
<80% |
|
|
IP Rating |
IP31 |
|
|
Weight |
0.5kg |
|
|
Standard Configuration |
Drive with pump head, hand-held controller, adaptor, and data cable |
|
|
Optional Accessories |
Small V-shape base, polished stainless steel pole, fixing plate, and specific tubing |
|
Compatible Pump Head and Tubing
|
SKU |
Product |
Pump Head |
Roller |
Pump Head |
Tubing |
Max Flow |
Weight |
|
BQ50-1J-A |
05.02.02A |
WX10-14-A |
4 |
ABS, POM |
ID ≤3.17(mm), |
20 |
0.5 |
|
BQ50-1J-B |
05.02.02B |
WX10-14-C |
4 |
ABS, PVDF |
|||
|
BQ50-1J-C |
05.02.02C |
WX10-18-A |
8 |
ABS, POM |
