Lab Companion Temperature & Humidity Chamber (Low Temp. TH-G) - MSE Supplies LLC

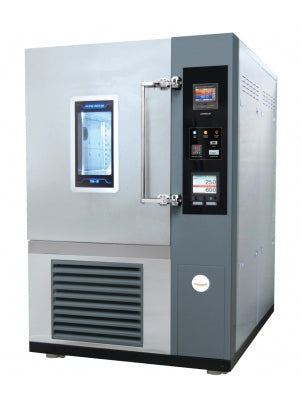

Jeio Tech Lab Companion Temperature & Humidity Chamber (Low Temp. TH-G)

SKU: AAH80018K

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

Buy Lab Companion products from MSE Supplies at the best value.

MSE Supplies offers Lab Companion Temperature & Humidity Chamber (Low Temp. TH-G) from Jeio Tech. They are standard environmental test chamber. They are equipped with highly interactive LCD controller, which is suitable for sophisticated long-term test cycles.

Country of Origin: Made in South Korea

Manufacturer: Jeio Tech

Main Features:

Accessories:

For accessories, please contact us so we can help you choose appropriate products for your needs.

Technical Specifications:

SKU#

AAH80018K

AAH80028K

AAH80038K

AAH80048K

AAH80058K

AAH80078K

Electrical requirements (380V, 50/60Hz)

3ph / 9.1A

3ph / 12A

3ph / 12.2A

3ph / 15.5A

SKU#

AAH80011K

AAH80021K

AAH80031K

-

-

-

Electrical requirements (230V, 60Hz)

1ph / 25.2A

1ph / 25.6A

-

-

-

Dimension (W×D×H)

Interior (inch)

19.7×24.8×23.6

23.6×24.8×31.5

23.6×33.5×31.5

39.4×31.5×39.4

39.4×39.4×39.4

39.4×39.4×57.1

Exterior (inch)

39.5×44.8×57.8

43.4×44.8×65.7

43.4×53.5×65.7

59.2×51.9×77.5

59.2×59.8×77.5

59.2×81.3×79

Viewing windows (inch)

7.9×13

10.6×13

Chamber volume (L)

189

302

408

800

1000

1450

Controller

Programmable, Touch screen type controller (5.7” color monitor)

Net weight (lbs)

705.5

848.8

903.9

1366.9

1499.1

1895.9

Temperature

Range (℃ / ℉)

-35 to 150 / -31 to 302 without humidity, 15 to 90 / 59 to 194 with humidity

* Best programmable control range : -30 to 140 / -22 to 284

Fluctuation (±℃ / ℉) at 40℃ / 75%RH

0.3 / 0.54

Variation (±℃ / ℉) at 40℃ / 75%RH

0.5 / 0.9

Time

Heating without humidity (min.)

60 from -40℃ to 120℃

(-40℉ to 248℉)

70 from -40℃ to 120℃

(-40℉ to 248℉)

90 from -40℃ to 120℃(-40℉ to 248℉)

Cooling without humidity (min.)

60 from 20℃ to -40℃

(68℉ to -40℉)

75 from 20℃ to -40℃

(68℉ to -40℉)

90 from 20℃ to -40℃(68℉ to -40℉)

Humidity

Range (%RH)

25 to 95 ※ See the Feature for more detailed humidity range check.

Fluctuation (±%RH) at 75%RH / 40℃

0.4

1.0

2.0

Variation (±%RH) at 75%RH / 40℃

3

Refrigeration

System

Mechanical single stage refrigerator system

(air cooling condenser)

Mechanical dual stage refrigerator system (air-cooled condenser)

Refrigerant

R-507

Water Supply

Capacity

15L (0.53cu ft) - Cartridge type

Water quality

pH6.2~7.2 / Electrical conductivity 20μs/cm to below

No. of wire shelves (standard / max.)

2 / 9

2 / 10

2 / 14

3 / 18

Distance of between shelves (inch)

1.6

Max. load per shelf (lbs)

44.1

55.1

88.2

Permitted total load (lbs)

110.2

143.3

220.5

Cable port

Standard: one hole provided / Ø50mm (2”)

Optional: max. two holes available / Ø50 or 80mm (2 or 3.2”)

Interface port

Standard: RS-232C [RS-485: optional]



About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.

MSE Supplies is an authorized distributor for Jeio Tech.
