IKA T-SP-1 Viscometers (40°C) - MSE Supplies LLC

IKA T-SP-1 Viscometers

SKU: 0025008238

  • $ 7695


IKA T-SP-1 Viscometers

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025008238

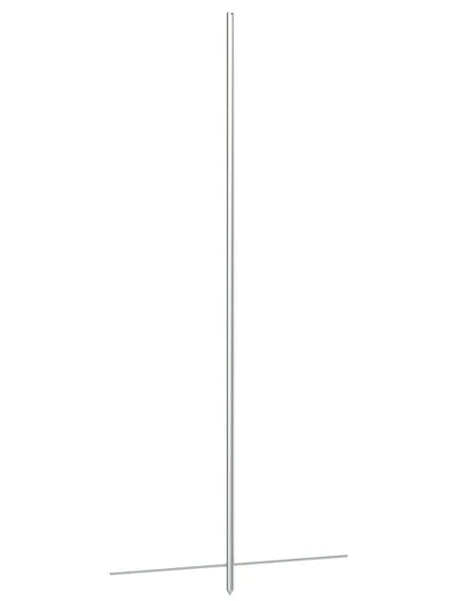

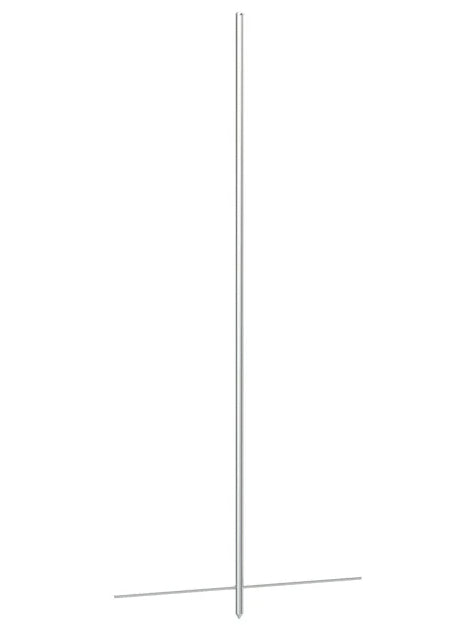

Single T-SP-1 spindle.
The spindle can only be used in combination with the motorized stand HELISTAND as well as the respective nut and coupling.
The complete T-SP-SET with nut and coupling is included with the HELISTAND Set and all ROTAVISC HELI Packages.
T-spindles used in combination with the motorized stand HELISTAND are particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA T-SP-1 Viscometers

Spindle geometry T-bar
Connection Thread M2.5 LH
Diameter 48.1 mm
Spindle length 114.3 mm
Mounting Bracket yes
Sample container: 600mL beaker low
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 93.73 mPa.s
Max. FSR match ROTAVISC lo-vi 18746 mPa.s
Min. FSR match ROTAVISC me-vi 1000 mPa.s
Max. FSR match ROTAVISC me-vi 200000 mPa.s
Min. FSR match ROTAVISC hi-vi I 2000 mPa.s
Max. FSR match ROTAVISC hi-vi I 400000 mPa.s
Min. FSR match ROTAVISC hi-vi II 8000 mPa.s
Max. FSR match ROTAVISC hi-vi II 1600000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 50 x 116 x 50 mm
Weight 0.002 kg
Permissible ambient temperature 5 - 40 °C
