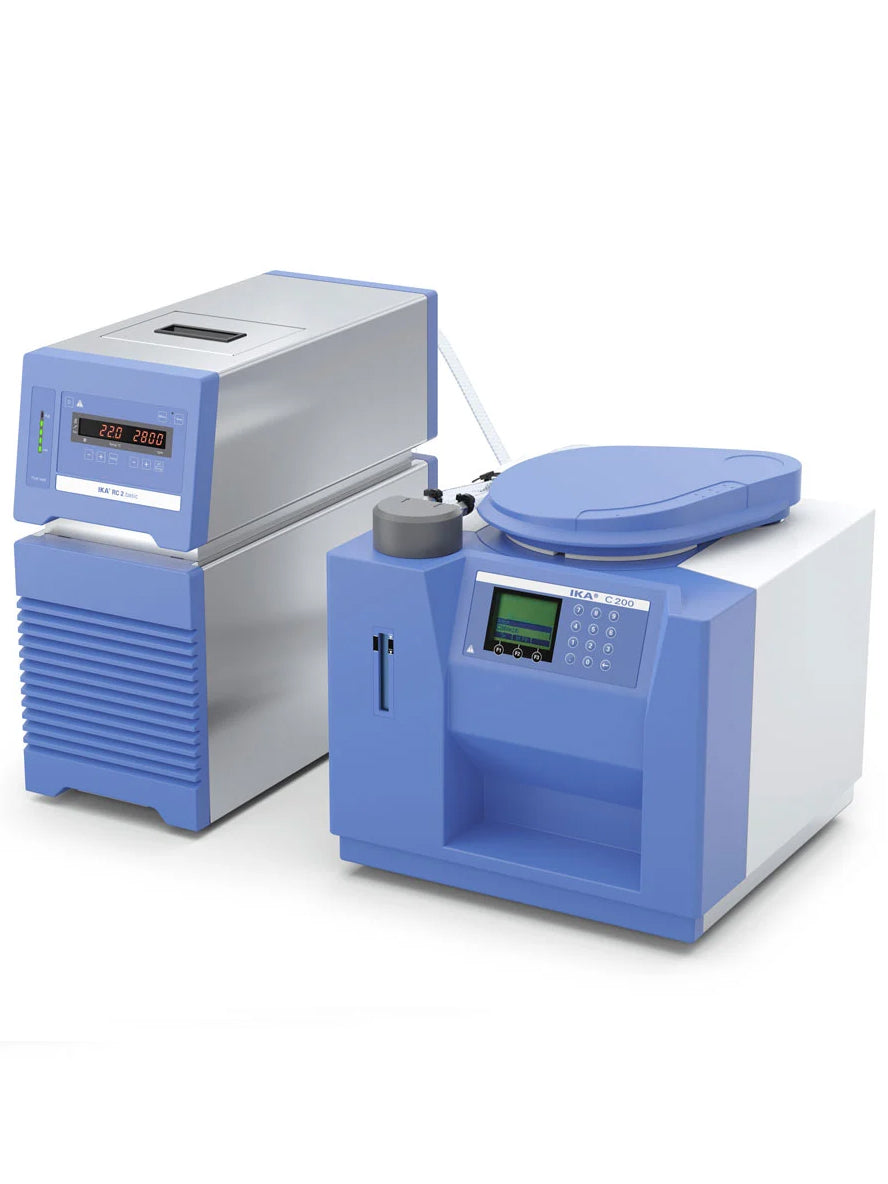

IKA C 200 Auto Calorimeters

SKU: 0010002382

  • $ 26,26795

IKA C 200 Auto Calorimeters

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010002382

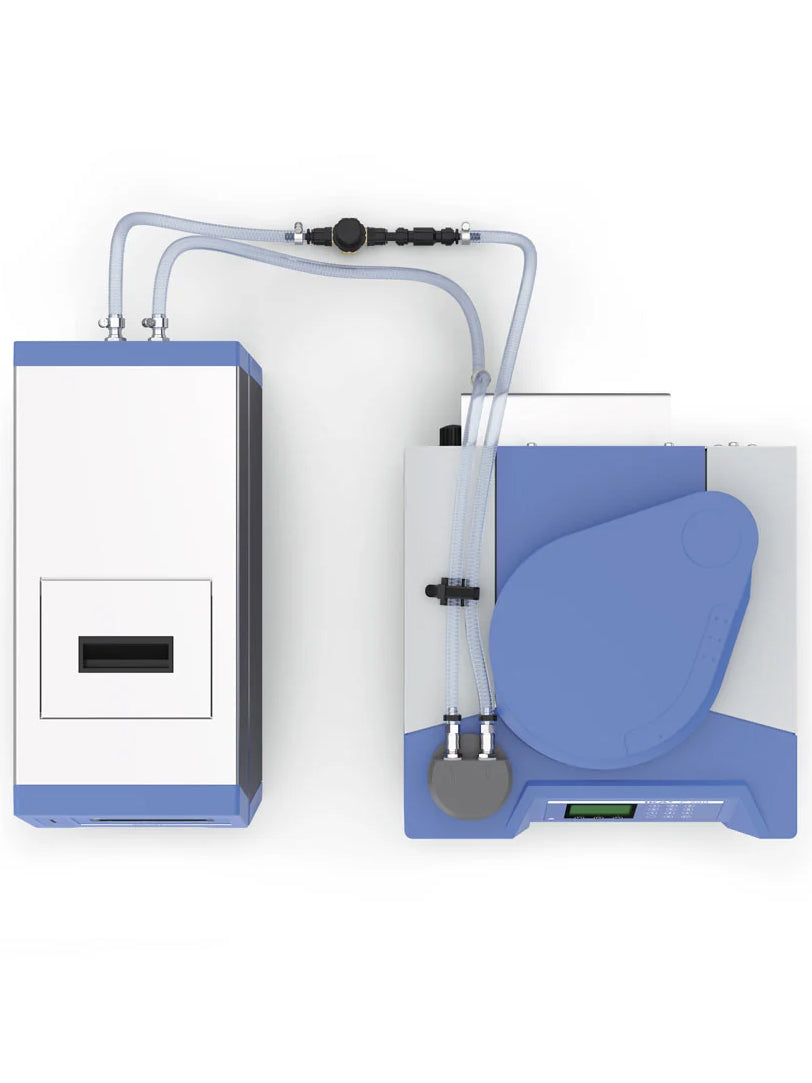

The C 200 auto package allows operating the C 200 with a completely automated water cycle. This results in ease of handling and saves valuable time especially for laboratories with a low number of analyses. The water circulates in a closed loop and is kept at a constant temperature by using a recirculating chiller. This leads to shorter preparation time for each experiment and even better reproducible results.

The scope of delivery includes:
C 200 calorimeter measuring cell
C 5010 decomposition vessel
C 248 oxygen filling station
RC 2 basic recirculating chiller
C 200.RC hose set
Consumables for calibration and installation

The semi-automated and conforming to standards combustion calorimeter determines the gross calorific value of liquid and solid samples. So far it has mainly been used for teaching and training purposes at technical schools and universities. Due to the automated water handling it is now also suitable for industrial laboratories with low number of analyses.

Four different operation modes enable the user to control the measuring times according to individual requirements:
Isoperibol: approx: 17 min.
Dynamic : approx. 8 min
Manual : approx. 17 min (depends on the operator)
Time controlled : 14 min

Measurements are possible according to e.g. DIN 51900, ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711.

The software C 6040 Calwin controls the unit and monitors the measurement of the samples. Additionally, collected data can be exported to e.g. Excel, Word, SQL and LIMS for further analysis. It is possible to operate several calorimeters with one PC. A PC is not part of the scope of delivery and needs to be provided by the operator. Calwin is sold separately.

Scope of delivery

  • C 200
  • C 5010 Decomposition vessel, standard
  • C 200.RC Set of hoses
  • RC 2 basic
  • C 248 Oxygen filling station
  • Ignation adapter
  • Water emptying hose

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA C 200 Auto Calorimeters

Measuring range max. 40000 J
Measuring mode dynamic 25°C yes
Measuring mode isoperibol 25°C yes
Measuring time dynamic approx. 8 min
Measuring time isoperibol approx. 17 min
Reproducibility dynamic (1g benzoic acid NBS39i) 0.1 %RSD
Reproducibility isoperibol (1g benzoic acid NBS39i) 0.1 %RSD
Working temperature max. 25 °C
Temperature measurement resolution 0.0001 K
Cooling medium permissible operating pressure 2 bar
Cooling medium tap water
Type of cooling flow
Chiller RC 2 basic
Rec. flow rate at 18°C 60 l/h
Oxygen operating pressure max. 40 bar
Interface printer Centronix
Interface PC RS232
Decomposition vessel C 5010 yes
Works according to DIN 51900 yes
Works according to DIN EN ISO 1716 yes
Works according to DIN EN ISO 18125 yes
Works according to DIN EN 15400 yes
Works according to DIN CEN TS 14918 yes
Works according to DIN CEN/TS 16023 yes
Works according to DIN SPEC 19524 yes
Works according to ASTM D240 yes
Works according to ASTM D4809 yes
Works according to ASTM D5468 yes
Works according to ASTM D5865 yes
Works according to ISO 1928 yes
Works according to GOST Certified yes
Dimensions (W x H x D) 400 x 400 x 400 mm
Weight 64.2 kg
Permissible ambient temperature 20 - 25 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 120 W
