Electrosynthesis Multiple Reactor Set, C-Series

  • $ 9,29885

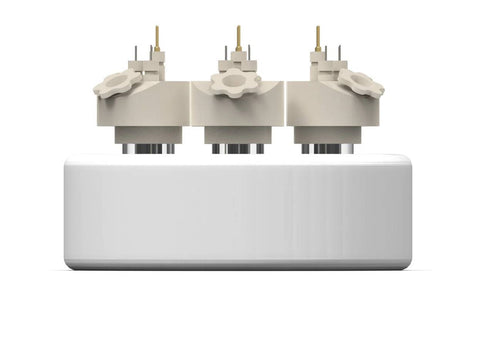

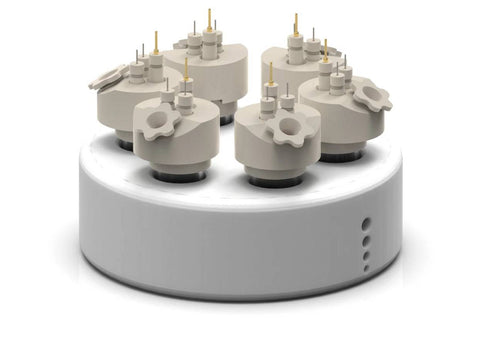

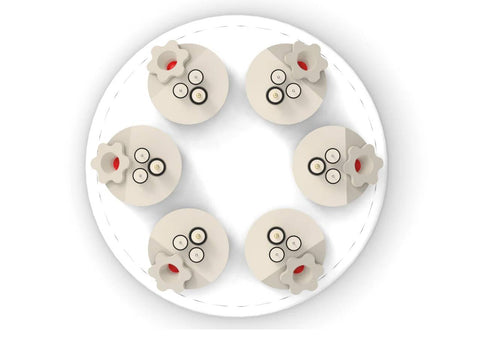

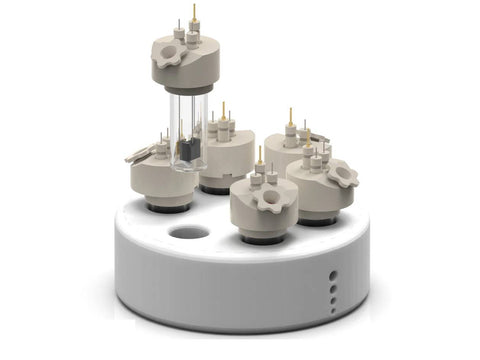

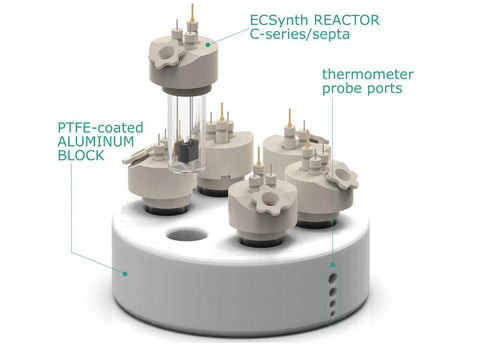

Electrosynthesis Multiple Reactor Set consists of a selected number of Electrosynthesis Reactors from C-series or C-series/septa and PTFE-coated Aluminum Block with a corresponding number of cavities.

Application Note:
This Electrosynthesis Multiple Reactor Set is suitable for both, constant current and constant potential electrolysis in aqueous or organic media. The assembled set should be placed on a hot-plate or a hot-plate magnetic stirrer. The heating block has pre-drilled holes for a thermometer probe. Each of those holes is 120 mm deep and can accommodate probes with diameter of 2, 3, 4 and 5 mm. Electrodes are not included in the set, so they need to be added to the quotation separately.

Specification:
Weight: approx. 1.8 kg
Maximum electrolyte volume: 7.5mL
Electrode plug diameter: 6 mm
Number of electrode slots: 3
Distance between anode and cathode: 9 mm
Outer diameter of the glass chamber: 20 mm
Effective height of the glass chamber: 44 mm
Maximum operational temperature: 200 deg C
Minimum operational temperature: -20 deg C
Tubbing size (if any): 1 mm ID, 1.6 mm OD
Septa size (if any): ND9
Heating block height: 45 mm
Heating block cavity depth: 40 mm
Heating block cavity diameter: 21 mm
Heating block diameter: 135 mm
Thermometer hole diameter: 2.5 mm, 3.5 mm, 4.5 mm and 5.5 mm

Product Includes:
1 x PTFE-coated Aluminum Block C-series
Selected number of Electrosynthesis Reactors from C-series or C-series/septa
