Dove Prisms
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

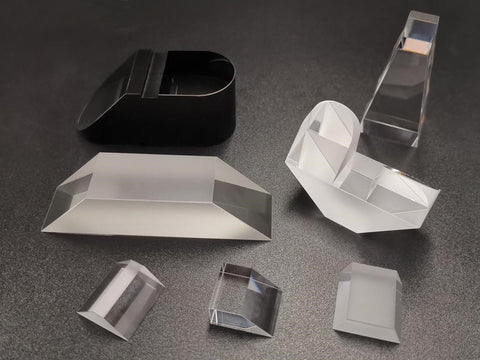

MSE supplies offers customized Dove Prisms with different materials, dimension, surface qualify, etc.

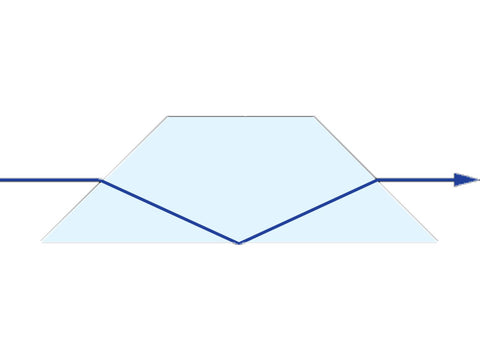

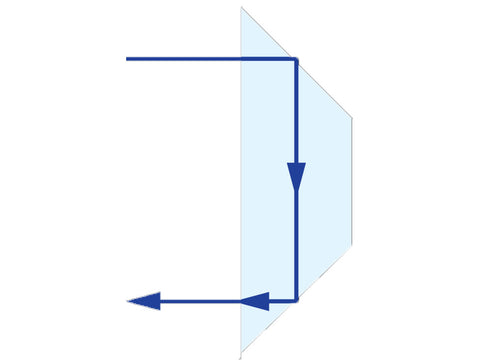

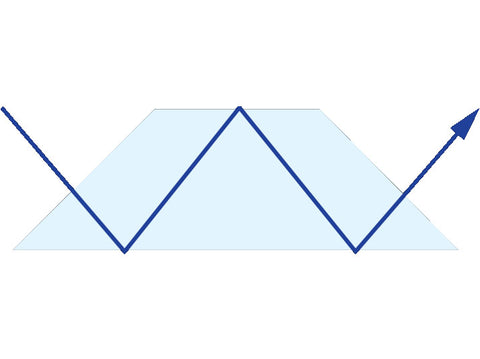

Dove prism is a basic optical element in the shape of the right angle prism with the top got cut off. It can be used to rotate, invert, or retroreflect images, depending on which surface and the position on the surface that the incident light comes into. It is better to use collimate light instead of converging light when using a dove prism since it will introduce astigmatism.
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
Technical Data:
| Parameters | Value |
| Material |
|
| Size (mm) |
5-300 |
| Size Tolerance (mm) | +0/-0.01~+0/-0.1 |
| Thickness Tolerance (mm) | ±0.01~±0.1 |
| Irregularity (P-V) @ 632.8nm | λ/10~λ/2 |
| Surface Quality | 20/10~60/40 |
| Centration | <30”~3' |
| Clear Aperture (%) | >90 |
| Bevel | Protective bevel as needed |
| Coating | Uncoated, AR, BBAR, Mirror |
