Ampcera Lithium Niobium Oxide, LiNbO3 (1.5 wt%) coated Single Crystal NMC 622 Cathode Powder, 10g
Ampcera® LiNbO3 (1.5 wt%) coated Single Crystal NMC 622 Cathode Powder, 3-6um D50, Cathode Material, 10g
Product Benefit: LiNbO3 coated Single Crystal NMC 622 (or NCM 622) Cathode Powder provides superior high rate capability of cathode when being used with solid state electrolyte materials. The coating of LiNbO3 on Single Crystal NMC 622 cathode not only supplied a protective surface coating but also optimized the electrochemical behavior of single crystal NMC 622 cathode material.
Product Number (SKU#): PO0226
CAS#: NMC 622(182442-95-1), LiNbO3 (12031-63-9)
Package Size: 10g
Particle Size:
- D10: ≥2.0 µm
- D50: 3.0~6.0 µm
- D90: ≤15.0 µm (typical value 7 µm)
Supplier: Ampcera Inc.
Specifications (Custom made cathode materials with LiNbO3 coating can be provided by Ampcera Inc. upon request. Please contact us for a quote.)
LiNbO3 Coating: 1.5 wt% of NMC 622
Appearance: Ash black color powder
Molecular Formula: LiNi0.6Mn0.2Co0.2O2 (Ni:Mn:Co = 6:2:2)
Material Type: Single crystal NMC 622 powder
Chemical Name or Material: Lithium Nickel Manganese Cobalt Oxide

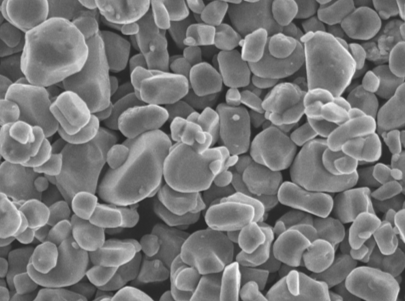

Figure is for reference only.
| Parameter | Specifications |
| Ni+Mn+Co (wt%) | 57.0~62.0 |
| Li (wt%) | 7.0~7.6 |
| Ni (mol%) | 60.0±1.0 |
| Mn (mol%) | 20.0±1.0 |
| Co (mol%) | 20.0±1.0 |
| Ca (wt%) | ≤0.0100 |
| Cu (wt%) | ≤0.0020 |
| Fe (wt%) | ≤0.0050 |
| Na (wt%) | ≤0.0300 |
Reference:
- "One‐pot aprotic solvent‐enabled synthesis of superionic Li‐argyrodite solid electrolyte." International Journal of Energy Research 46.12 (2022): 17644-17653.
- "Surface Coatings for Cathodes in Lithium Ion Batteries: From Crystal Structures to Electrochemical Performance." Journal of The Electrochemical Society 169.4 (2022): 043504.
