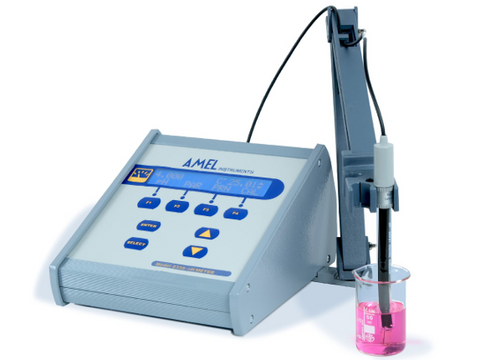

AMEL Digital Precision pH & Temperature Meter, Model 2335
SKU: AMEL-2335
AMEL Digital Precision pH & Temperature Meter, Model 2335
MSE Supplies is the exclusive distributor of AMEL electrochemistry instruments in the U.S., offering direct access to their cutting-edge solutions.
Overview
Model 2335 is the new digital pH meter by AMEL, offering a completely new level of quality, accuracy and reliability, typical features of AMEL’s equipment. The newly developed microprocessor offers many key features, among which semplicity of use, flexibility, unrivalled performances and exceptional price to quality ratio. Model 2335 offers high performances in any application, both in laboratories and industrial applications. The large display provides the user with complete control of all parameters and the intuitive keyboard allows for quick operations and calibrations. USB connection and software are provided to exchange data with computer and printer.
Technical Specifications
| Parameter | Range | Resolution | Accuracy |
| pH | -2,000 to 16,000 | 0,001 ±3digit | ±0,005 |
| mV | -2000,00 to +2000,00mV | 0,1mV ±2digit | ±0,2mV |
| Current | -2,0000 to +2,0000mA | 0,1μA | ±0,5% |
| Temperature | -20,0 to +120,0°C | 0,1°C | ±0,2°C upon PT1000 class |
| Input Impedance | > 1TΩ | ||
| Bias Current | < 2pA at 25°C | ||
| Temperature Sensor | PT1000 | ||
| Interface | |||
| Display | 2x 20 characters backlight LCD | ||
| Keyboard | 8-keys | ||
| Calibration Menu | Microprocessor-based system with step-through menu | ||
| Communication Interface | USB 1.0 (COM port simulation) | ||
| Power Supply and Dimensions | |||
| Voltage Mains | 110 to 220V AC ±10% 50/60Hz | ||
| Power Consumption | 10W maximum | ||
| Dimensions (L x W x H) | 220 x 210 x 120mm | ||
| Weight | 1,8kg | ||
Accessories and Spare Parts
The following pH electrodes and temperature probes can be used with Model 2335 pH and Temperature Meter, please refer to AMEL’s pH electrodes and temperature probes catalogues for drawings and dimensions.
| PT1000 | Temperature probe PT1000, glass body |
| PT1000/P | Temperature probe PT1000, plastic body |
| 191/SUPS9 | Power supply for single unit 9V |
| 191/USB | USB cable A – B |
| 391/STB | Three electrodes flexible arm holder |
| 9863 | Buffer solution pH 4.01, 250mL |
| 9865 | Buffer solution pH 7.00, 250mL |
| 9866 | Buffer solution pH 9.21, 250mL |
| 211/SGG/12 | pH sensitive membrane, 12mm glass body |
| 411/CGG/12 | Combined electrode for pH, 12mm glass |
| 411/CGG/6 | Combined electrode for pH, 4.5mm glass |
| 411/CGG/6JZ | Combined electrode for pH, 4.5mm short glass & NS6 joint |
| 401/PM3/12 | Combined electrode for pH, 12mm glass, triple frit |
| 421/CGP/12 | Combined electrode for pH, 12mm plastic |
| 411/TGG/12 | Combined electrode for pH, 12mm glass, double salt bridge |
| 405/DXK/12 | Combined electrode for pH, 12mm glass, gel electrolyte |
AMEL also provides customized electrodes tailored to specific experimental needs. Please contact us for more information.
We cannot sell AMEL Products to customers outside US and Canada.
