All Direction Three Axis High Energy Planetary Ball Mill,  MSE Supplies

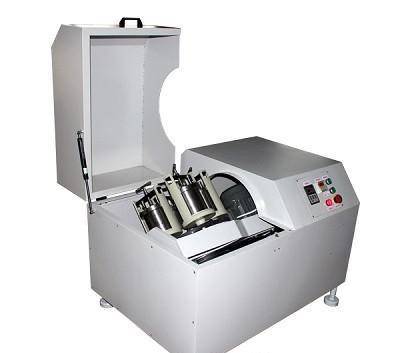

All Direction Three Axis High Energy Planetary Ball Mill

  • $ 7,75000


Features for All Direction Three Axis High Energy Planetary Ball Mill

  • Three-axis, all-direction, no dead end of milling, guarantee high milling uniformity.
  • 4 jar design
  • Total Jar Volume: 1 - 20 L
  • Special gearing design for low operating noise
  • Good for dry, wet, and vacuum milling. Can reduce powder size down to ~0.1 micron.
  • Programmable milling process sequence for automation.
  • Stable milling speed to ensure reproducibility.
  • Standard one year warranty and optional multi-year warranty (not including consumables, one spare belt is included with the system).

Model Numbers and Specifications, Please Contact Us for Quotations

Model Number Total Volume (L) Maximum Rotation Speed (RPM) Power (KW) Material Capacity (L) Outer Dimension (mm)
MA0502
1 670 0.75 0.35 1100*750*825
MA0501
2 670 0.75 0.65 1100*750*825
MA0503
4 670 0.75 1.3 1100*750*825
MA0504
6 670 0.75 2 1100*750*825
MA0505
8 580 1.5 2.5 1220*900*960
MA0506
10 580 1.5 3 1220*900*960
MA0507
12 580 1.5 4 1220*900*960
MA0508
16 510 3 5 1530*1070*1220
MA0509
20 430 4 6 1700*1100*1200
