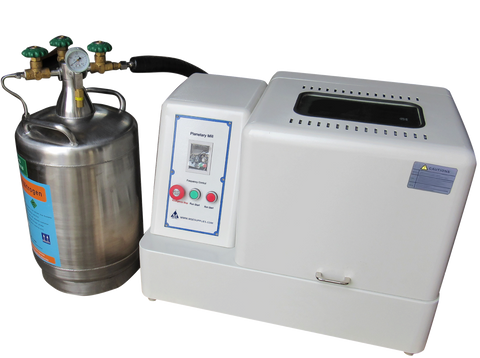

MSE PRO 1L High Energy Vertical Cryogenic Planetary Ball Mill with 15L Liquid Nitrogen Tank

SKU: MA0148

  • $ 9,95095


MSE PRO High Energy Vertical Cryogenic Planetary Ball Mill, 1L (4 x 250 mL) with 15L Liquid Nitrogen Tank

Cryogenic milling with liquid nitrogen can lower the temperate of the material during the milling process. It can prevent the material from overheating and hazardous decomposition in the high energy environment of the mill. It is designed for milling temperature sensitive materials, such as plastic, rubber and organic materials.

  • Designed for holding four 250 mL size milling jars (to be ordered separately).
  • Keeping the mill and material from overheating.
  • Suitable for material with low melting or glass transition temperature, such as polymers like rubber and plastics.

Shop for milling jars and milling media.

Our wide range of premium quality milling jars and milling media balls have excellent wear resistance and milling efficiency for powder milling, and therefore can reduce particle sizes of powder materials quickly while minimizing the contamination from the wear debris.

Why MSE PRO products from MSE Supplies

Choose a combination of MSE PRO planetary ball mill, milling jars and milling media balls to get the superior performance for your milling applications at the best value on the market. All MSE PRO ball milling products are further supported by a team of trained scientists and engineers.

Contact us today to discuss your ball milling needs.

    Features of 1L High Energy Vertical Cryogenic Planetary Ball Mill

    • Special gear design for low noise and vibration.
    • Stable rotation speed.
    • Programmable milling segments, with reversible rotation option.
    • Secured jar holders to prevent jars from flying out.
    • Safety guaranteed transparent view port.
    • Liquid nitrogen tank included (15L).
    • Keeping the mill and material from overheating.
    • Suitable for material with low melting or glass transition temperature, such as polymers.
    • One year product warranty (excluding consumables) and long term product and applications support.
    • Customized power supply. Please specify when placing the order.

    Applications of Planetary Ball Mills:

    Mixing, grinding and milling of powder materials to micrometer size or nanometer size. Typical materials for grinding and milling include ceramics, metals for powder metallurgy, lithium battery materials, cannabis plant materials, minerals, pigments, agrochemicals, plastics, rubber, etc. Both dry milling and wet milling with solvent can be performed.

    Reference academia customers of MSE PRO High Energy Vertical Planetary Ball Mill from MSE Supplies:

    NASA, Lawrence Berkeley National Laboratory, Argonne National Laboratory, Columbia University, UIUC, Purdue University, Cornell University, University of California - Irvine, Arizona State University, University of Idaho, University of Washington, Clemson University, Texas A&M University, Binghamton University, South Dakota State University, University of Nebraska - Lincoln, Texas State University, University of Massachusetts - Amherst, North Carolina State University, University of Waterloo in Canada, CNR-SPIN in Italy... and more

      Main Parameters

      Product Number

      MA0148

      Mill Jar Volume

      250 mL (50 mL, 100 mL compatible with adaptor)

      Mill Jar Materials Shop for milling jars

      Voltage

      110V single phase (by default). Other voltage options are available upon request (extra cost applies)

      Machine Dimensions

      730 mm x 430 mm x 580 mm

      Machine Weight

      80 kg for the machine weight (excluding accessories)

      Liquid Nitrogen Tank Weight 35 kg

      Work mode

      2 or 4 jars working simultaneously

      Milling mode

      Dry/wet milling

      Speed Frequency

      Adjustable

      Drive Mode

      Gear drive

      Rotational Speed

      70~670 RPM, adjustable

      Revolution : Rotation Speed Ratio

      1:2 (revolution speed: 35 - 335 RPM)

      Jar Loading Capacity

      Material + milling balls < 2/3 jar volume

      Input Granularity Size

      < 10 mm for soft materials

      < 3 mm for hard materials

      Output Granularity Size

      Min. of 0.1 µm

      Fields of Application

      Materials Science, Chemical Engineering, Battery Materials Research, General Particle Size Reduction

      Feed Material

      Soft, hard, brittle, fibrous, cellulose, herb, leaves, glass, soil, mineral ores, pharmaceuticals, chemicals, fluorescent materials, pigments, paints, inks, carbon, battery materials, etc.

      Type of grinding jars

      Stainless steel, zirconia, agate, alumina, nylon, PU, tungsten carbide, Teflon (PTFE) etc., vacuum jars are available upon request. Shop for milling jars

      Type of grinding / milling media

      Stainless steel balls, zirconia balls, alumina balls, agate balls, tungsten carbide balls, etc. Shop for milling media

      Max. continuous operating time (full-load)

      72 hours

      Interval operation

      Yes, with direction reversal (Reverse Time Between Clockwise and counterclockwise turns: 1-99 min)

      Certificates

      ISO 9001, CE

      Product image is for reference only.

      Frequently Asked Questions (FAQs):

      • What lubricant should be used for the maintenance of the gears of the planetary ball mill? Answer: #2 Lithium Grease - NLGI 2 Lithium Grease can be applied on the gears every a few months for maintenance purposes (lubrication, anti-rust, etc.).
