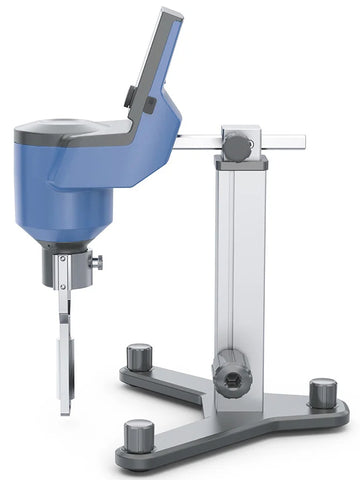

IKA ROTAVISC lo-vi Complete Viscometers (200 rpm, 6000 min)

  • $ 3,88695


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025000310

The ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set (SP1-SP4), a protective bracket, temperature sensor and ROTASTAND stand.

Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment.

IKA ROTAVISC lo-vi Complete
Viscosity measuring range: 1 - 6,000,000 mPas

Scope of delivery

  • ROTAVISC lo-vi Complete
  • ROTASTAND
  • SP set-1
  • PT 100.8
  • Guard rail
  • USB Cable - USB A to Micro-B, 2 m

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA ROTAVISC lo-vi Complete Viscometers (200 rpm, 6000 min)

Viscosity Measuring Range 6000000 mPas
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Spring torque 0.0673 mNm
Guard rail lo-vi
Measuring spindle series SP set-1
Motor rating output 4.8 W
Overload protection yes
Direction of rotation right
Display TFT
Speed display TFT
Speed range 0.01 - 200 rpm
Setting accuracy speed ±0.01 rpm
Speed adjustment TFT
Torque display yes
Torque measurement trend
Timer yes
Timer display TFT
Time setting range 0.017 - 6000 min
Temperature measurement resolution 0.1 K
Working temperature display TFT
Connection for ext. temperature sensor PT 100
Graph function yes
Operating mode timer and continuous operation
Calibration option yes
Touch function yes
Pemitted density 9999 kg/dm3
Working temperature -100 - 300 °C
Fastening on stand extension arm
Support rod diameter (with integrated fastening on stand) 16 mm
Telescope stand stroke 200 mm
Plug-in coupling (Ø) 12 mm
Basic container volume 600 ml
Stand Rotastand
Stroke max. 200 mm
Diameter 16 mm
Dynamic load 5 kg
Dimensions (W x H x D) 351 x 629 x 372 mm
Weight 7.1 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS 232 interface yes
USB interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 24 W
Power input standby 0.06 W
DC Voltage 24 V=
Current consumption 1000 mA
