Neware MHW-25-S Benchtop Temperature Chamber for Battery Environmental Test

  • $ 4,49500


Product details:

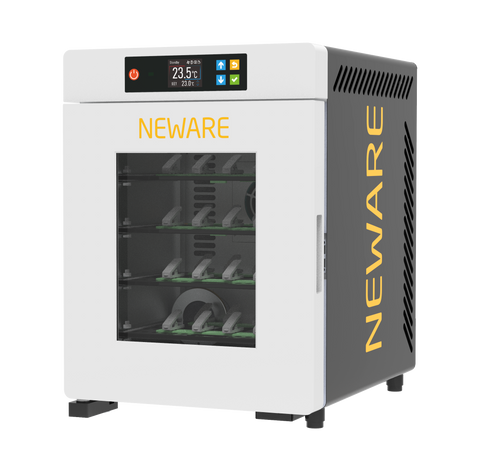

Neware MHW-25-S benchtop temperature chamber is designed for lab scale environment test on coin cell and pouch cells. It has two independent channels which can accommodate up to 32 coin cells. The cells are organized over four shelves that maximizes airflow and constant temperature conditions. It is compatible with Neware Battery tester for in situ battery performance test. The clips for battery connection will be included for free if ordered from MSE Supplies (Please specify the cell type upon ordering).

Features:

  • Benchtop design: <0.2 mfloor space
  • Temperature Fluctuation: ≤1℃
  • Temperature Range: 15℃~60℃
  • Temperature Deviation: ±2.0℃
  • Antifog glass

About Neware

Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified.

MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on  product configuration.

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

Specifications:

SKU BR0228
Neware Model MHW-25-S
Power 110V
Power Consumption 200W
Capacity 25L

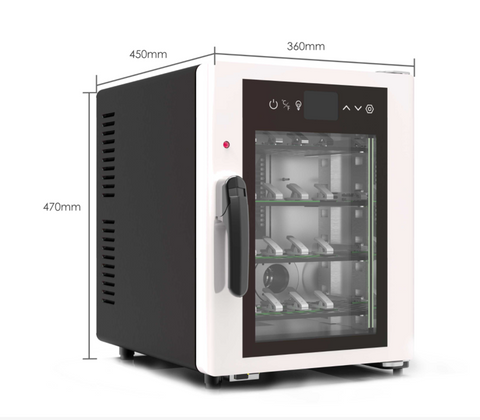

Outer Dimensions 360x450x470mm
Inner Dimensions 280x250x360mm
Weight ~40kg
Temperature Range 15~60℃
Temperature Fluctuation ≤1℃ (Unloaded when temperature is stable)
Temperature Deviation ±2.0℃ (Unloaded when temperature is stable)
Heating Time 25℃→60℃ ≤30 min
Cooling Time 25℃→15℃ ≤60 min
Warranty  Limited 1 year warranty,  Lifetime technical support
