Neware CT-9008-5V5A 8 Channels High Precision (nA) Battery Testing System
SKU: BR0241A
Product Details:
Neware CT-9004-5V5A high precision battery testing system has lots of features, such as 8 channels, 0.02% accuracy, 1000Hz data acquisition frequency, 4 current range, supporting GSM and CDMA. The current accuracy is as high as ±30nA. It has 8 channels which have independent constant-current and constant-voltage source, programmed and controlled by computer software. It is widely used for high precision electrochemical performance test on coin cell, cylindrical cell and pouch cell in battery R&D and manufacturing lab.
Product Features:
- Four current ranges: 0.1μA-150μA, 150μA-5mA, 5mA-150mA and 150mA-5A
- Accuracy:±0.02% FS
- Current response time: ≤100μS
- Minimum plus width: 100μS
- Data acquisition frequency: 1000Hz

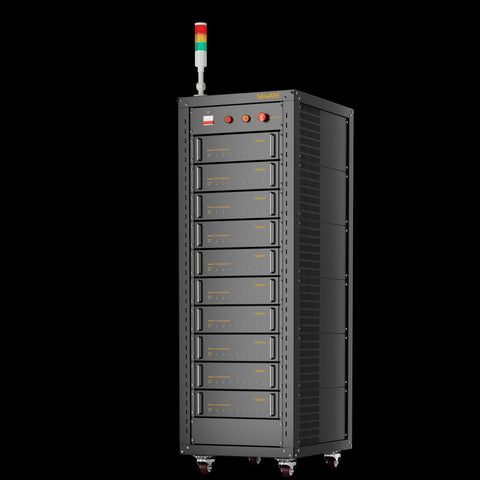

For bulk orders (≥5 sets), we can offer a complimentary rack to hold multiple units. Please contact MSE Supplies for bulk orders.
About Neware
Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified,
MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Product Specifications:
| Neware Model | CT-9008-5V5A | |
| SKU# | BR0241A 110V | |
| BR0241B 220V | ||
| Enter the power supply | AC 220V +10% / -20%, 50Hz; | |
| Interior input power | 300W | |
| Resolution ratio | AD：16bit；DA：16bit | |
| Input impedence | ≥1000MΩ boot state (leakage current is 100μA during shutdown) | |
| Channel characteristics | Four-range, wide dynamic range, high-speed sampling and high precision | |
| Voltage | Voltage range per channel | Charging: -5V ~ +5V; Discharge: 0.7V ~ 5V (9.05G channel plate), -5V ~5V (9.07G channel plate) |
| Minimum discharge voltage |
(0.3V+0.05Ω/m* Line length (m)* current (A)+0.05Ω* current (A)) ~ 5V; (eg: If the test lead is 2 meters long and the current is 2A, then the voltage range is0.6V ~ 5V) |
|
| Accuracy | ± 0.02% of FS | |
| Stability | ±0.005% of FS | |
| Current | Range of current per channel |
Range 1: 0.1μA—150μA |
| Range 2: 150μA—5mA | ||
| Range 3: 5mA—150mA | ||
| Range 4: 150mA—5000 mA | ||
| Accuracy | ± 0.02% of FS | |
| Range 1: ± 30nA | ||
| Range 2: ± 1μA | ||
| Range 3: ± 30μA | ||
| Range 4: ± 1mA | ||
| Stability | ±0.005% of FS | |
| Power | Single-channel output power |
25W |
| Stability | ± 0.02% of FS | |
| Time | Current response time | ≤ 100μs (10% to 90% or 90% to 10%); |
| Working step time range |
≥10ms | |
| Data logging | Record condition | Time △ t: ≥1ms |
| Voltage △ U: ≥ 1mV | ||
| Current △ I: ≥ 100nA | ||
| Record frequency | 1000Hz (continuous charge and discharge mode) | |
| Charge | Charging mode | Constant current charge / constant current constant voltage charge / constant voltage charge / constant power charge / constant power constant voltage charge / constant resistance charge |
| Cut-off condition | Voltage, current, relative time, capacity, energy, and power | |
| Discharge | Discharge mode | Constant current discharge / constant power discharge / constant resistance discharge / constant current constant voltage discharge; |
| Cut-off condition | Voltage, current, relative time, and capacity | |
| DCIR test | Support for DCIR measurement steps | |
| Recurrence | Cycle measurement range |
1 to 65,535 times |
| Single cycle step number |
255 | |
| Loop nesting | With a nesting cycle function, up to 4 layers of nesting support | |
| Protect | Software protection | Power loss data protection |
| With the offline test function | ||
| Safety protection conditions can be set, parameters can be set including: voltage limit / voltage limit / current limit / current limit / capacity limit protection / voltage fluctuation protection / current fluctuation protection; |
||
| Voltage and current detection and sampling |
Four-line connection | |
| Data base | The MySQL database was used to manage the test data | |
| Upper-computer communication mode |
Based on the TCP / IP protocol (100M Ethernet) | |
| Data output mode | EXCEL2003, 2010, TXT | |
| CI | Internet access | |
| Number of main channel of equipment |
4 | |
| Types of fixtures | Universal clamp (polymer clamp) | |
| Server operating system | Windows 10 | |
| Scan code function | The software can implement, configure scanning gun scanning, test data and bar code binding (scanning gun is not included) |
|
| SMBUS characteristic | ||
| Hardware compatibility | Compatible with SMBUS, I2C communication protocol. | |
| Software compatibility | Compatible with the standard specification field information instructions as defined by S mart Battery Data Specification Revision 1.1 | |
| Data read frequency | 1s | |
| MES data upload | Have | |
| Number of computer-controlled channels |
Multiple cabinets | |
