Neware CT-4008T 5V10mA Battery Testing System

SKU: BR0217A

  • $ 2,19595
  • Save $ 26400



Product Details:

Neware CT-4000 battery testing system was launched in 2008 and is one of the most popular battery testing systems around the world. ISO9001:2015 certified, CT-4008T Multi Range mA Battery Testing System, characterized with 0.05% FS accuracy and down to μA capability, enables users to perform DCIR tests, dQ/dV and other basic tests on three-electrode system. It has eight channels, which has independent constant-current and constant-voltage source, programmed and controlled by computer software. It is widely used to test the electrochemical performance of coin cells, cylindrical cells and pouch cells in battery R&D and manufacturing labs.

Product Features:

  • Three current ranges: 5μA-1mA, 1mA-5mA and 5mA-10mA
  • Accuracy: 0.05% FS
  • Rise time: ≤1ms
  • Minimum plus width: 500mS

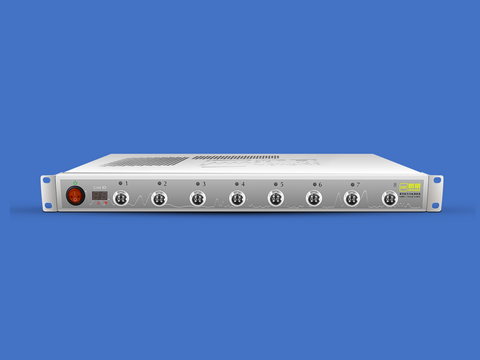

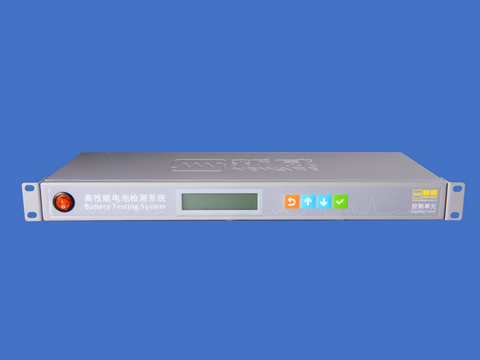

Neware CT-4008T battery test system includes a main test unit and a mid machine. The mid machine can control up to 10 main test units.

Extra coin cell clamps can be ordered here

About Neware

Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified.

MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

Product Specifications:

*If you do not have any middle machine or your middle machine is old, we recommend you to choose regular product with middle machine.

SKU#

BR0217A 110V

BR0217B 220V

BR0217AC 110V, without middle machine

BR0217BC 220V, without middle machine

Neware Model CT-4008T 5V10mA
Channel 8 independent
Power AC 220V/110V ±10% / 50Hz
Power Consumption 25W
Voltage Range 25mV-5V
Voltage Accuracy ± 0.05% FS
Voltage Stability ± 0.05% FS
Current Range Range1: 5μA-1mA; Range2: 1mA-5mA; Range3:5mA-10mA
Current Accuracy ± 0.05% FS
Maximum Cycles 65535
Dimensions 480x330x44 mm
Weight 10kg
Warranty Limited 1 year warranty. Lifetime technical support
Specification link Neware CT-4008T 5V10mA
Software download Click here to download
Cables Coin cell clips included. If you need other type of cables, please specify.



FAQ

1. What is middle machine?
A: Middle machine is used to communicate between PC and cyclers. You will need at least one middle machine to run the testers.

2. How many cyclers can a middle machine connect?
A: One middle machine can connect up to 10 cyclers.

3. I have a middle machine already. Can I use my old middle machine?
A: Some middle machines are in an old version which is not compatible with new cyclers. Please email us to check if your middle machine version works.

4. Is middle machine the same for all types of cyclers? or do I need to buy different type of middle machine to run different cyclers.
A: There is only one type of middle machine. It can connect 5V10mA, 5V20mA, 5V50mA, 5V6A and 5V12A cyclers
