Multi-groove Slurry Coating Applicator For Battery Research - MSE Supplies LLC

MSE PRO Multi-groove Slurry Coating Applicator For Battery Research

$ 349⁰⁰
Save $ 40⁰⁰

SPECIFICATIONS

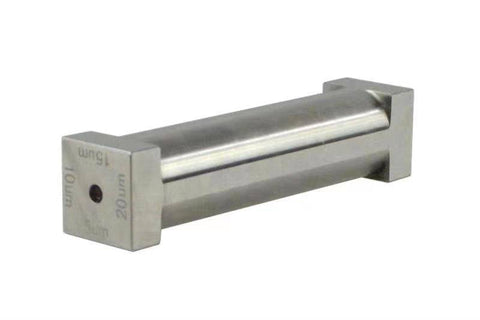

This multi-groove slurry coating applicator is designed for uniform battery electrode slurry coating on Al and Cu foils. It has four grooves (50, 100, 150, 200 µm) with 80 mm coating length. Other coating thickness and length is available upon request. It also can be used for paint, adhesives coating on a flat substrate.

SKU #	BR0204
Coating thickness	50, 100, 150, 200 µm
Coating length	80 mm
Device length	100 mm
Optional dimensions	Coating length 80 mm: 25, 50, 75, 100 µm 30, 60, 90, 120 µm 100, 200, 300, 400 µm 50, 75, 100, 150 µm 100, 150, 200, 250 µm 250, 500, 750, 1000 µm Coating length 160 mm: 5, 10, 15, 20 µm 25, 50, 75, 100 µm 30, 60, 90, 120 µm 100, 200, 300, 400 µm 50, 75, 100, 150 µm 100, 150, 200, 250 µm 250, 500, 750, 1000 µm
Note	Clean the tool and substrates before use for the best coating quality. Clean the tool after each use.
