Correlating Spectroscopic Data with the Physical and Surface Properties of the Same Sample
A spectroscopic measurement reports what the optical path sees at the moment of acquisition. Whether that result represents the bulk composition, a surface phase, or a measurement artefact from particle scattering or solvent background depends on variables the spectrometer itself cannot resolve. Pairing optical data with morphological imaging, particle characterisation, and solution quality verification is what makes a spectroscopic result something that can be acted on rather than just recorded.
Morphological Context for Spectral Results
Spectral peaks identify composition but not the spatial or morphological context that determines whether the result applies to the bulk or to a surface phase. Stereo and digital microscopes provide the direct imaging needed to see particle morphology, aggregate structure, and coating uniformity at the same scale the spectroscopic measurement integrates over. An optical absorption feature from a thin film is interpretable as a film property only when microscopy confirms the film is continuous and uniform across the measurement spot, not a collection of isolated islands that would shift peak position and intensity without changing the nominal composition.
Particle Size and Surface Wettability as Parallel Measurements
Optical spectra of particulate suspensions convolve composition with particle morphology: scattering coefficients scale with size, and extinction spectra shift with both concentration and distribution. A particle size distribution analyzer separates size and concentration contributions from the spectral signal, which is the precondition for converting absorbance data into concentration values in polydisperse systems. A contact angle measurement system on the same powder reports wettability, which governs how completely the material disperses into the measurement solvent and therefore whether the spectrum represents the full composition or a size- or density-selected fraction of it.
Solution Quality Verification and Sample-Side Consumables
For aqueous measurements, dissolved ions and organics in the solvent contribute to baseline absorbance in the same wavelength ranges as many analytes. Handheld water quality meters measure pH, conductivity, dissolved oxygen, and turbidity at the preparation point, confirming the solvent background is within the purity range the spectroscopic assay requires before the measurement begins. For reflectance and transmittance modes on solid samples, materials testing consumables supply the polished discs, optical windows, reference standards, and mounting accessories that set the sample geometry the spectrometer requires to read a solid interface rather than a solution.
Spectroscopic measurements are bounded by the quality of what enters the optical path and by the context data needed to interpret what comes out. Morphological imaging, particle characterisation, wettability, and solvent purity each close a gap that the spectrometer alone cannot address. The Materials Science products hub covers the full range of analytical, surface, and characterisation equipment available from MSE Supplies.
Frequently Asked Questions
Should I choose a single beam or a double beam UV/Vis spectrophotometer?

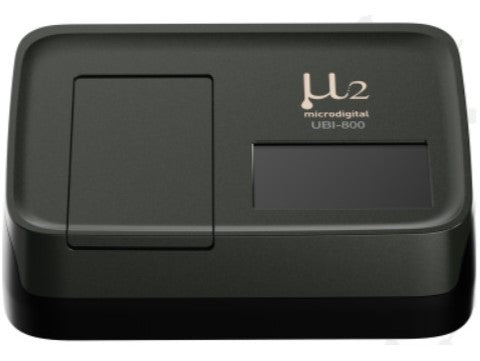

Single beam instruments read the blank and the sample one after the other and suit routine absorbance and concentration work. Double beam instruments measure the reference and sample at the same time, which reduces the effect of lamp drift on long scans and kinetics. The MSE PRO Double Beam UV/VIS Spectrophotometer (8-Cell) also takes several cuvettes per run.
What wavelength range do I need?

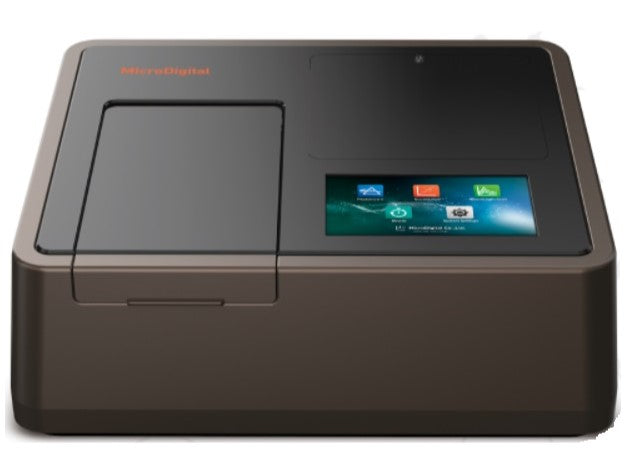

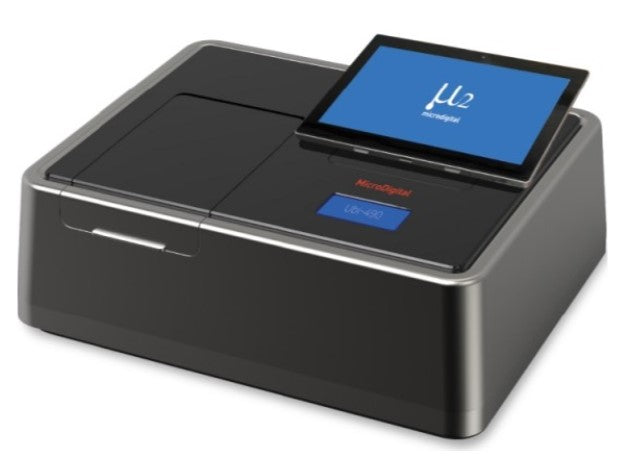

Work in the UV, such as nucleic acid and protein readings at 260 and 280 nm, needs a model that starts at 190 to 200 nm, like the MSE PRO 190-1100nm Single Beam Scanning UV/Vis Spectrophotometer. Colorimetric assays in the visible range can use a model that starts at 320 or 325 nm, such as the MSE PRO 325-1100nm Single Beam UV/Vis Spectrophotometer.
What should I use for microliter samples or 96-well plates?
Nano spectrophotometers read a small drop without a cuvette, which saves sample when you quantify DNA, RNA or protein. Options here include the Accuris SmartDrop Nano Spectrophotometers and the Nabi UV/Vis Nano Spectrophotometer. For assays run in plates, the Accuris SmartReader 96 Microplate Reader is the better fit, and its filter accessories are listed separately.
Does this collection include instruments other than UV/Vis?
Yes. It includes the MSE PRO FTIR Spectrometer with ATR diamond for identifying functional groups, the MSE PRO Economy Compact Lab Fluorescence Spectrophotometer, the Lumi Single Tube Luminometer for luminescence assays, and a Gasera photoacoustic detector for FTIR measurements of solid, semi-solid and liquid samples. MSE PRO HPLC and gas chromatography systems are listed here as well.
Which accessories should I order with the instrument?
Check the accessory listing for your model. The MSE PRO Double Beam UV/VIS Spectrophotometer Accessories listing covers the double beam models, and the SmartReader 96 filter accessories set the wavelengths the microplate reader can measure. Match the model name on the accessory page to your instrument before you order.
How do I order several instruments or a custom configuration?
For several units, such as spectrophotometers for a teaching lab, use the bulk order request form and list each model and quantity. For a specific configuration, an accessory bundle or a formal quote for a purchase order, send a quote request with the model numbers you are considering.
