What the Surface Needs Before the Goniometer Can Measure It
A contact angle goniometer reports what a liquid does on a surface at the moment of measurement. It does not report what the surface is, why it behaves that way, or whether the result is typical of that material or of that sample. Getting interpretable data requires that the substrate, the coating method, and the complementary characterization tools are each chosen to give the measurement something meaningful to report on. A poorly prepared surface or one that has not been verified by a complementary technique produces contact angle data that is internally consistent and externally uninterpretable.
Substrate Chemistry and Surface Reference Points
The baseline wettability of the substrate determines what change the coating or treatment introduces. Conductive glass substrates such as ITO and FTO glass are a common reference in electrochemical and photovoltaic surface studies because their surface energy is well characterized and their conductivity allows charge-based surface modifications to be applied and reversed in a controlled way. A niobium single crystal substrate or similar crystalline substrate provides an atomically defined surface that eliminates grain boundary effects and surface roughness as variables, isolating chemistry as the only thing that changes between measurements.
Thin Film Deposition and Coating Uniformity
Coating thickness and uniformity directly affect contact angle values: a film that varies in thickness across the substrate produces contact angle variation that has nothing to do with chemistry. A dip coater for research labs applies thin films at a controlled withdrawal rate, which sets film thickness through viscosity and surface tension at a given speed. Consistent withdrawal rate across samples is what makes contact angle data from coated surfaces comparable between runs rather than just internally consistent within one experiment.
Complementary Imaging and Particle-Level Characterization
Contact angle results on powder compacts or porous surfaces are averages over a heterogeneous area, and the spatial variation that drives that average is visible only under a laboratory microscope. A particle size analyzer connects surface energy measurements to particle morphology when the material under study is a powder or suspension: specific surface area and size distribution tell you how much surface the contact angle result represents, which is what determines whether the wettability number translates into a real process improvement. For the complete range of characterization and surface science tools available from MSE Supplies, the Materials Science products hub covers all research categories.
Contact angle data is only as informative as the surface that produces it. Substrate chemistry, coating uniformity, and complementary morphological characterization each constrain the interpretation: without them the number is real but its cause is not known, and a change in that number between experiments cannot be attributed to anything specific.
Frequently Asked Questions
What does a contact angle tell you?
It is the angle a liquid drop makes with a solid surface. Below 90° the surface is wetted (hydrophilic), above 90° it is hydrophobic, and above 150° it is superhydrophobic.
What is the difference between static and dynamic contact angle?
A static measurement records a single resting drop. Dynamic measurements record the advancing and receding angles as the drop grows, shrinks or slides, and the difference between them (hysteresis) shows surface roughness and chemical uniformity.
How do you measure surface free energy?
Measure contact angles with two or more liquids of known surface tension, such as water and diiodomethane, then calculate the surface energy with a model such as OWRK.
What is the pendant drop method?
A drop hangs from a needle and its shape is analysed to calculate the surface tension of the liquid, or the interfacial tension between two liquids.
Can I measure full wafers?

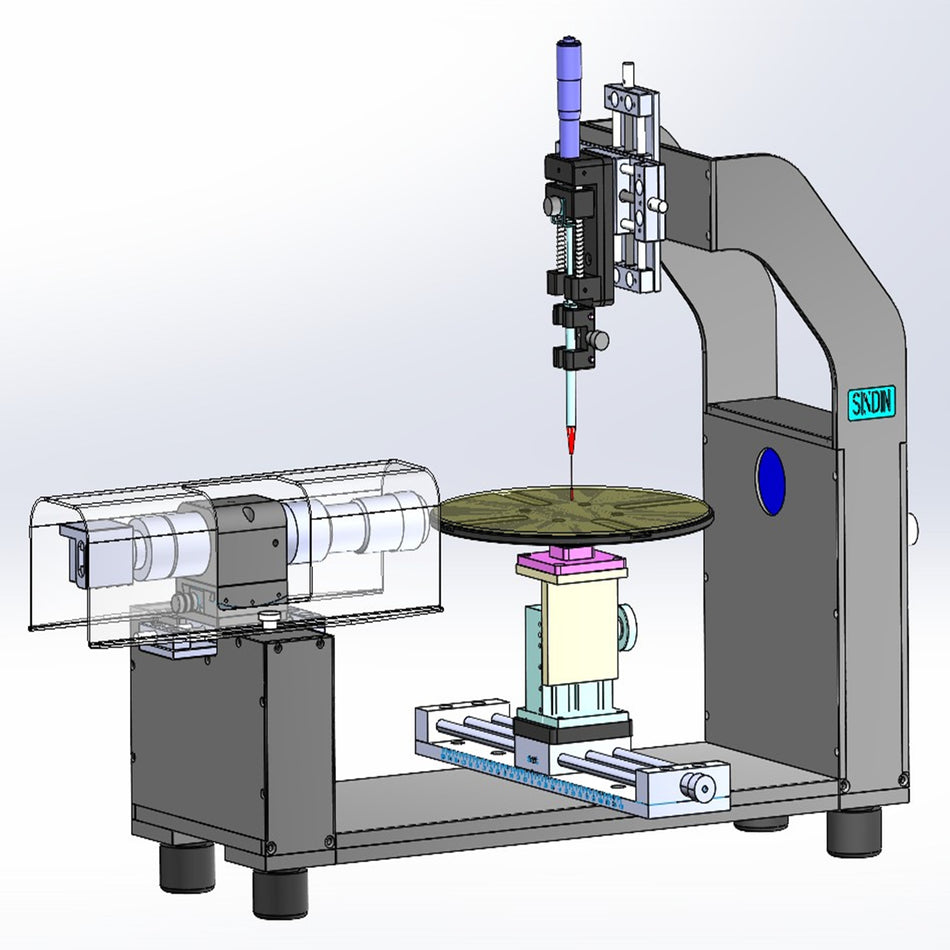

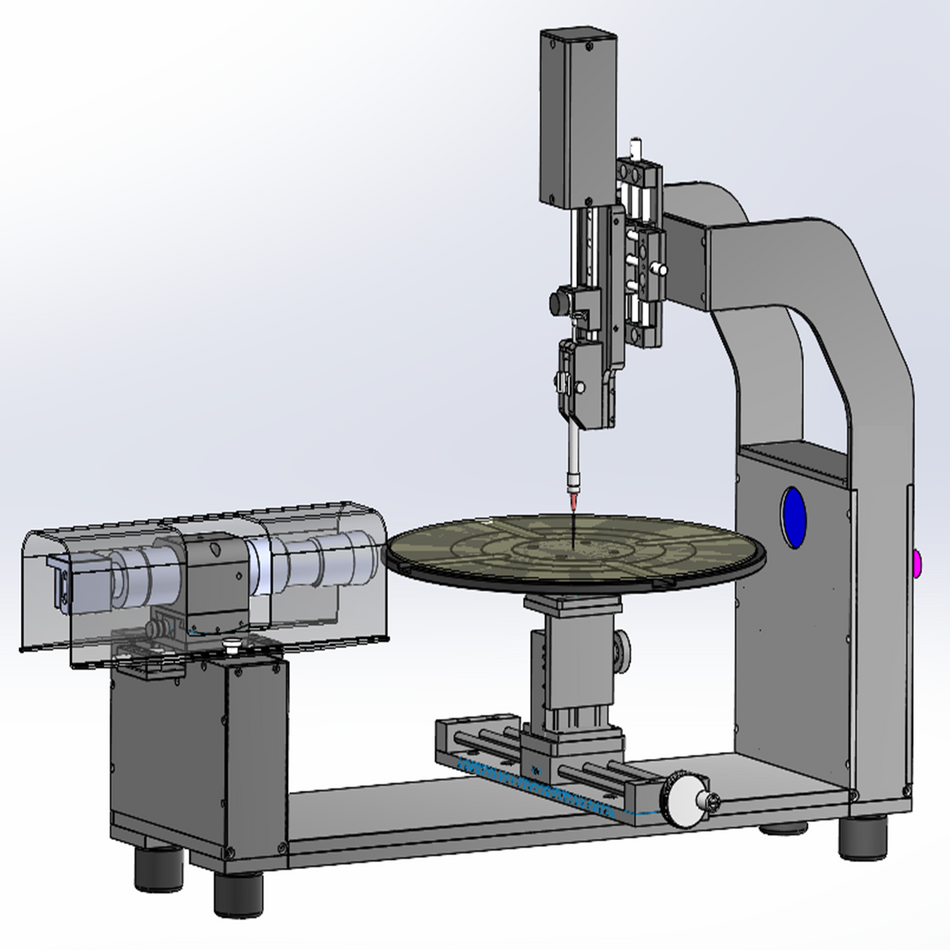

Yes. Wafer stage goniometers take 8 inch or 12 inch wafers and can measure several points across the surface to check coating and cleaning uniformity.
What to know before you buy

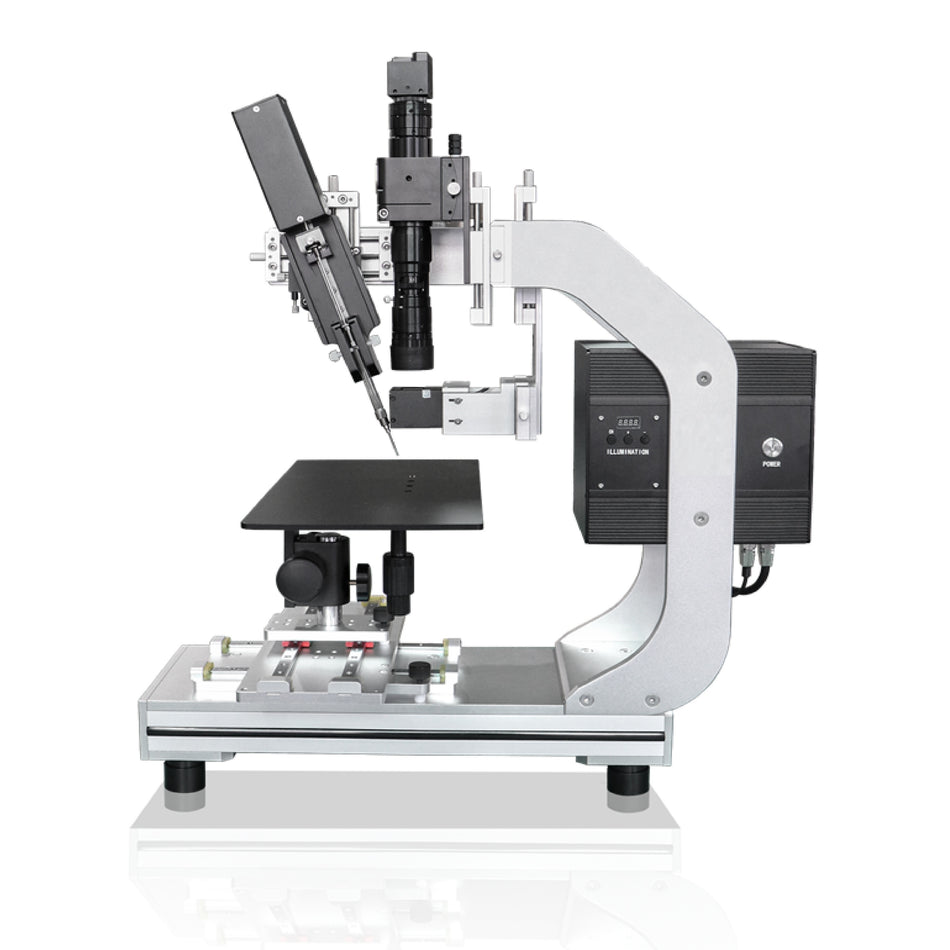

This contact angle instrument range runs from compact and portable units to automatic and wafer-scale systems. For routine wettability checks, the standard contact angle meter and the compact goniometer cover static contact angle on flat samples. Models with a manual or automatic injection system, or an injection pump, give more control over drop volume, which helps repeatability between operators.

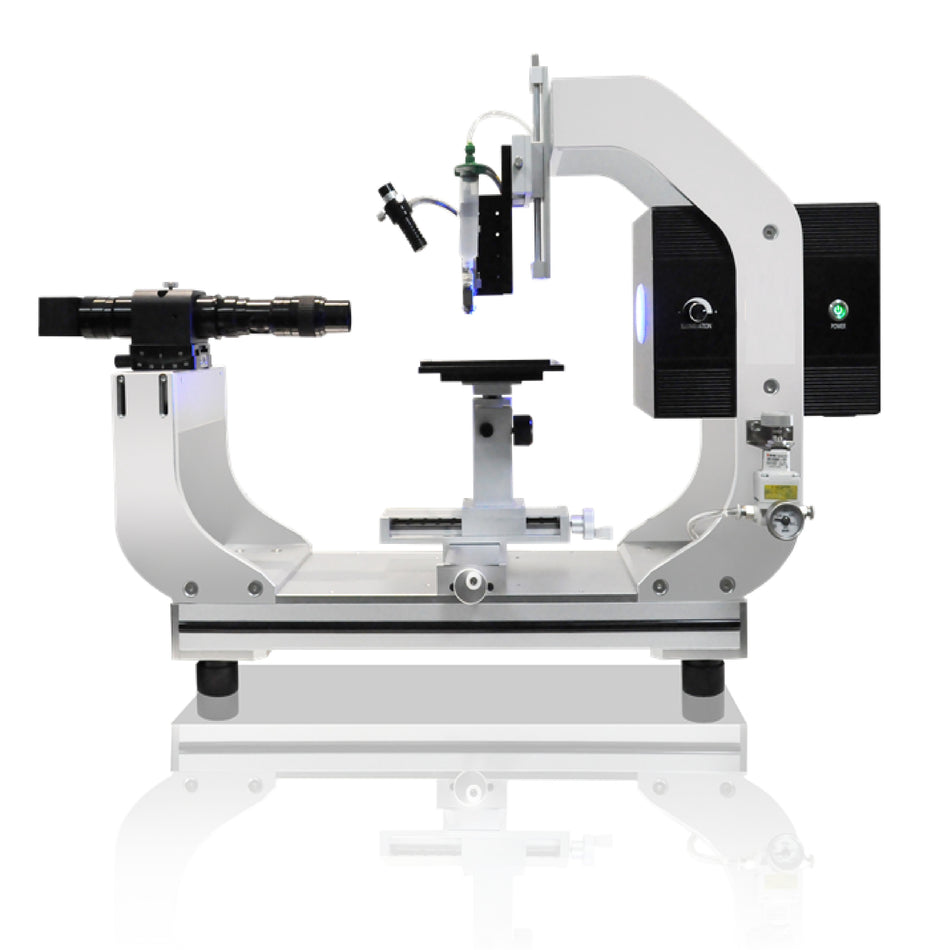

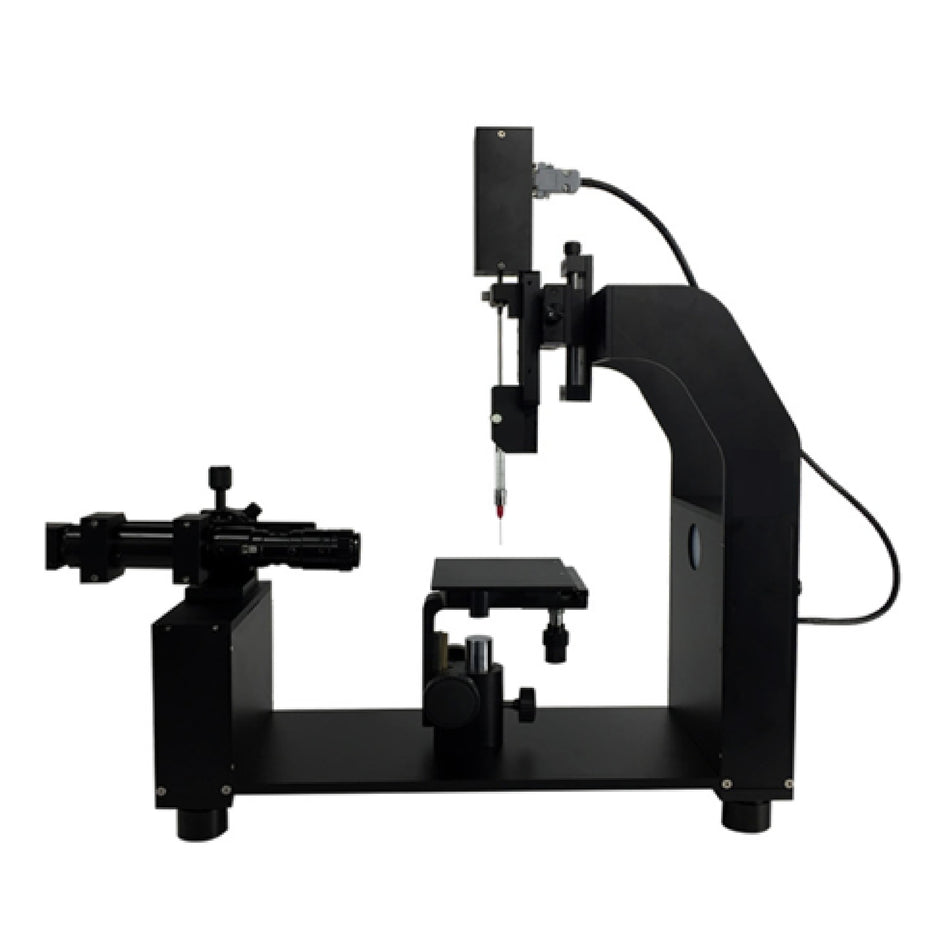

For surface energy and interfacial tension, the advanced and automatic meters add pendant drop tensiometry. The tilting stage goniometer measures advancing and receding angles and roll-off on inclined samples. The precision micro-droplet model suits small or patterned features, and the research-grade and fully automatic models suit labs running many samples.

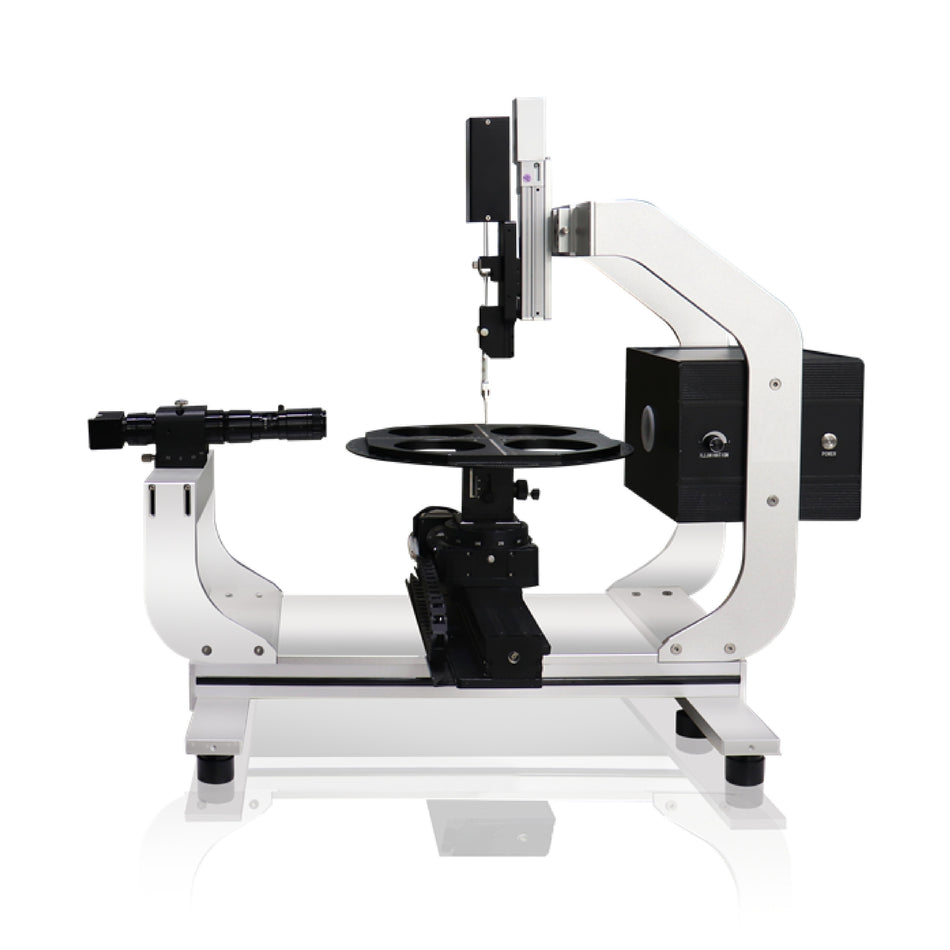

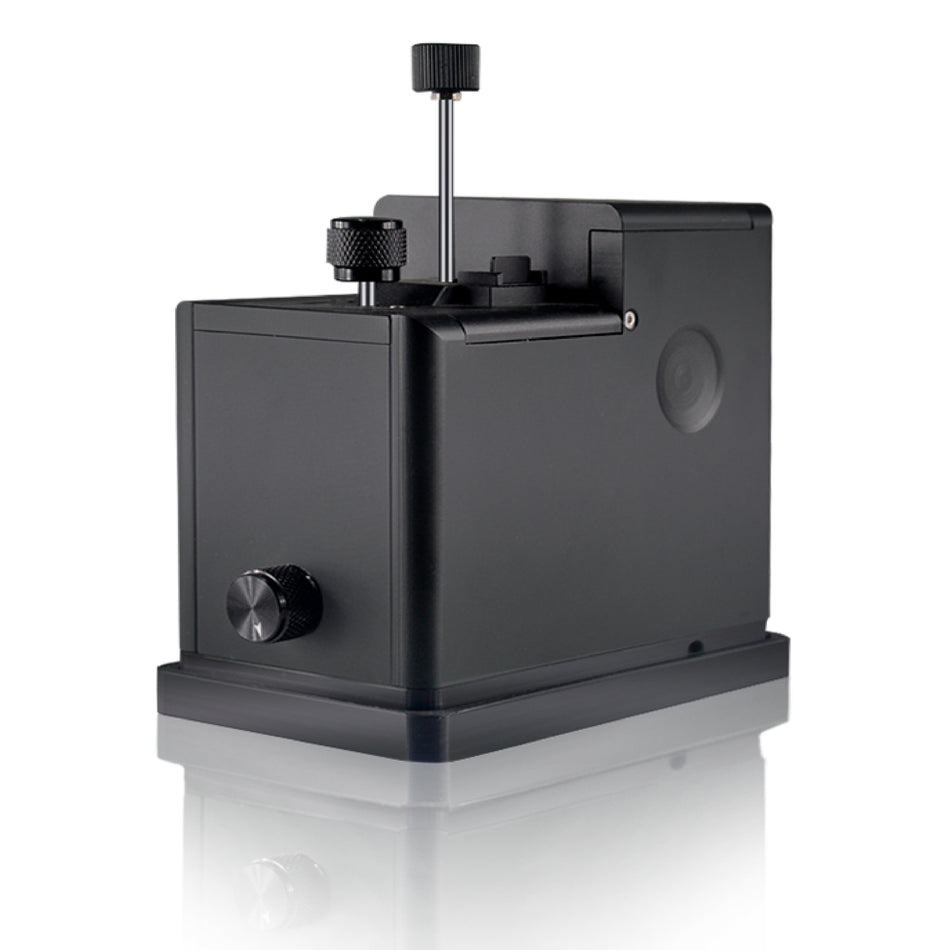

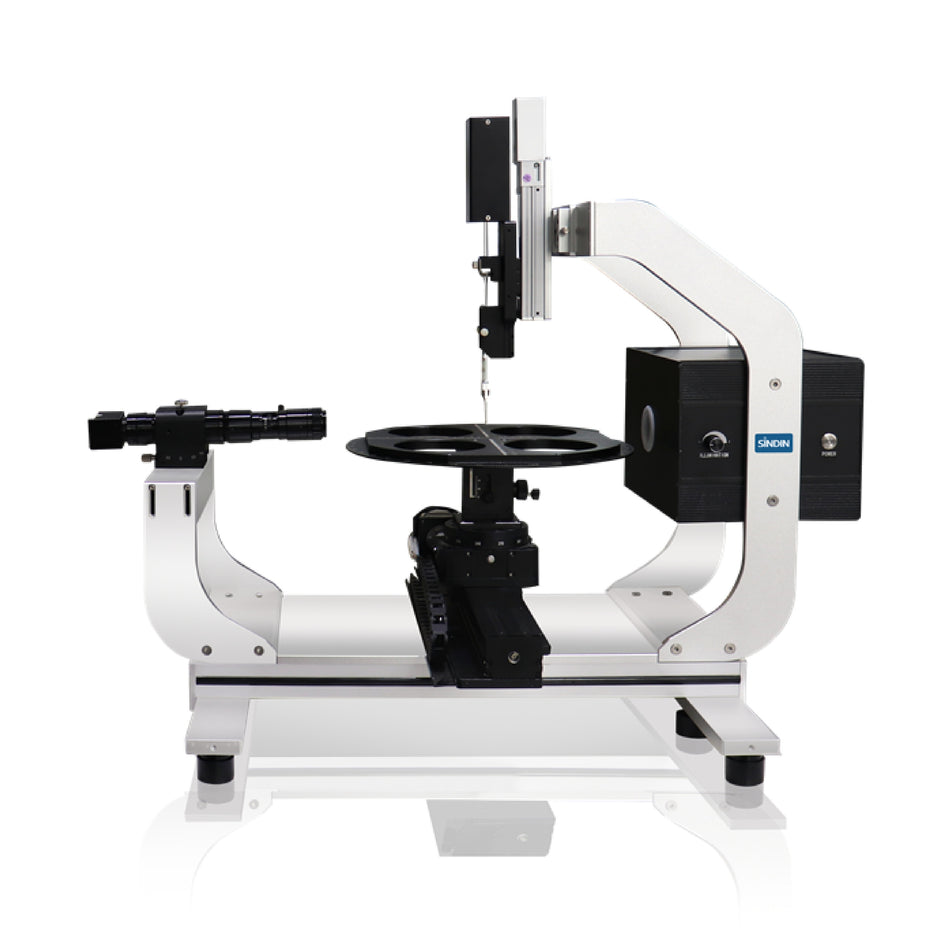

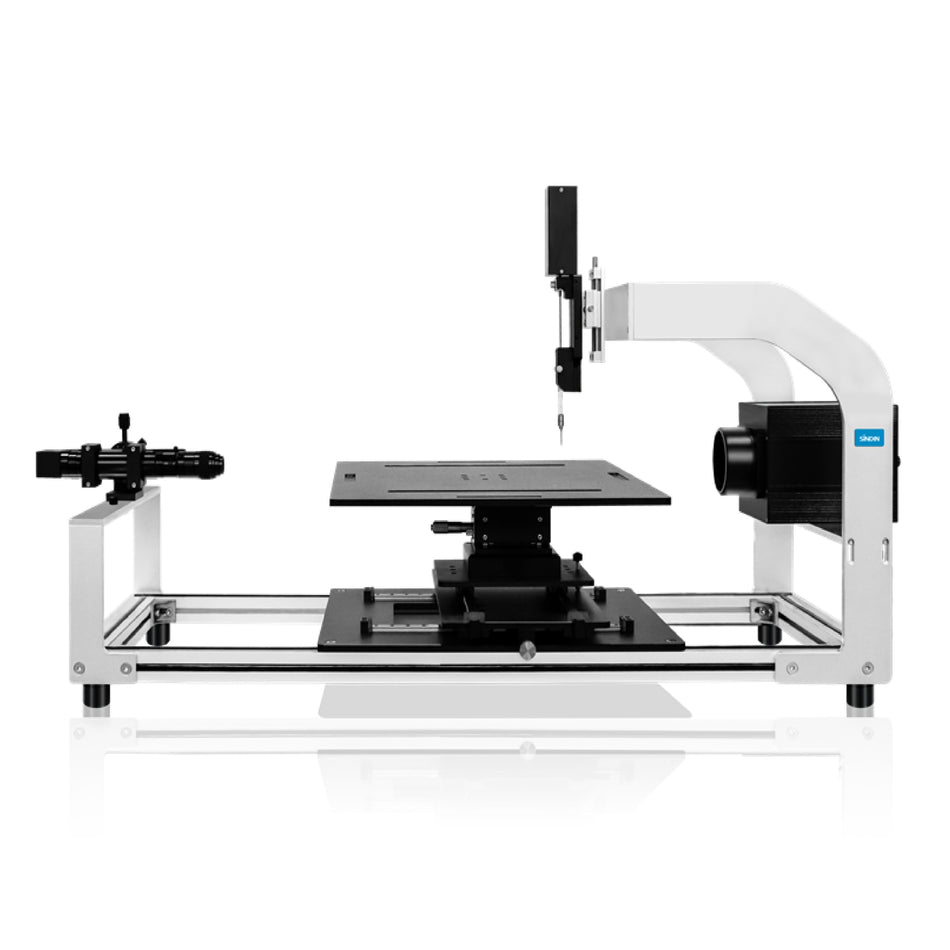

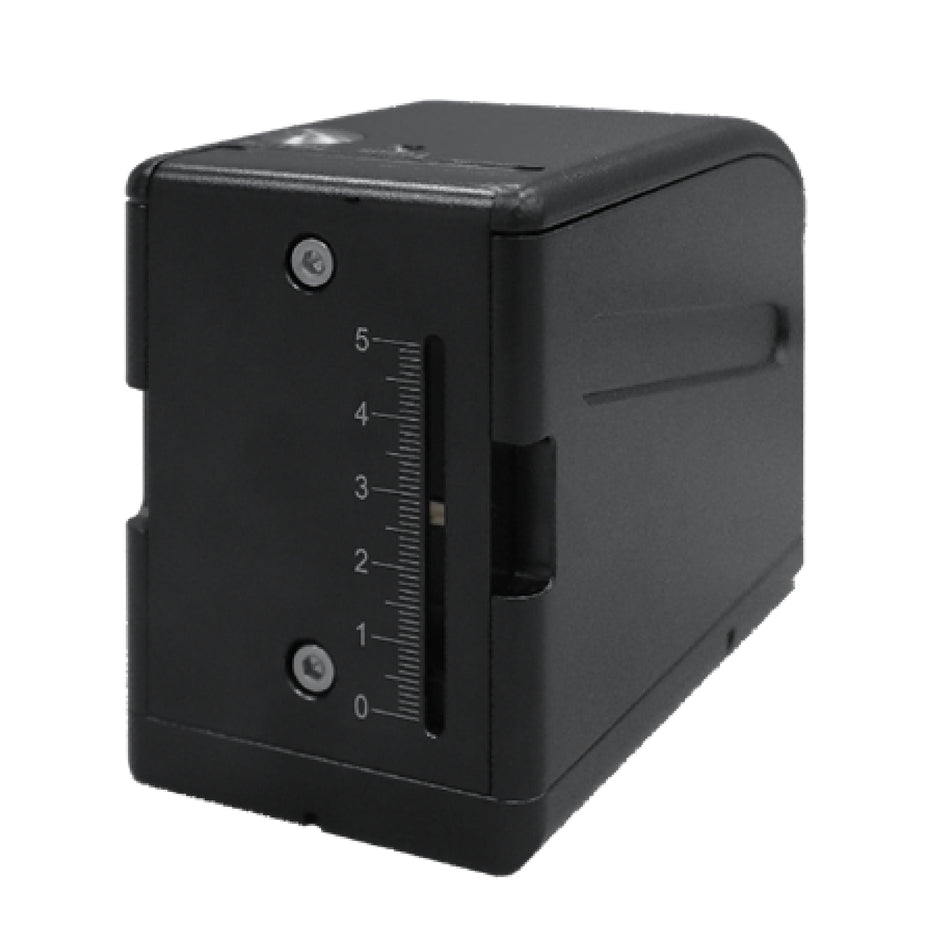

For semiconductor work, the wafer stage goniometers take 8 inch and 12 inch wafers, and a fully automatic wafer stage version maps many points. Portable units let you test large parts in place. For tips on consistent results, see why contact angle measurements are inconsistent.
