Nabi™ Ultraviolet-Visible (UV/Vis) Nano Spectrophotometer

  • $ 7,75000
  • Save $ 3,30000


Nabi™ Ultraviolet-Visible (UV/Vis) Nano Spectrophotometer

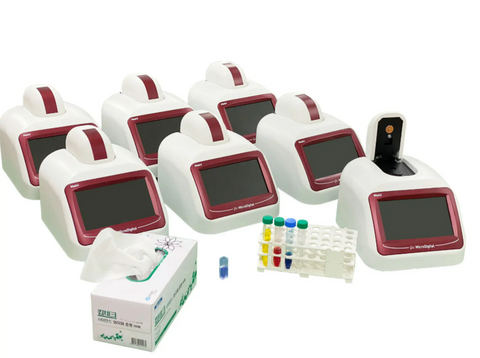

MSE Supplies offer a Nabi™ Ultraviolet-Visible Nano Spectrophotometer from MicroDigital. Nabi™ is a miniature UV/Vis spectrophotometer that can measure cuvette and microvolume samples. Using the spectrometer technology, it can accurately and efficiently measure/analyze single wavelengths as well as spectrums.

The Nabi™ Ultraviolet-Visible Nano Spectrophotometer is comparable to Thermo Fisher NanoDrop 2000c Spectrophotometer based on product specifications.

Ultraviolet-Visible spectrophotometry (UV–Vis or UV/Vis) refers to absorption spectroscopy or reflectance spectroscopy in part of the ultraviolet and the full, adjacent visible regions of the electromagnetic spectrum. It is routinely used in analytical chemistry for the quantitative determination of diverse analytes or sample, such as transition metal ions, highly conjugated organic compounds, and biological macromolecules.

Brand: Nabi™

Manufacturer: MicroDigital Co.Ltd.

Main Features:

  • Wide range of wavelength from 200 to 1100 nm.

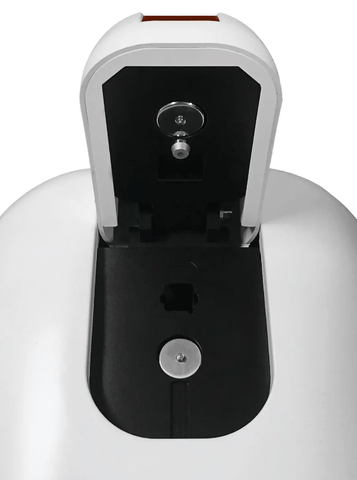

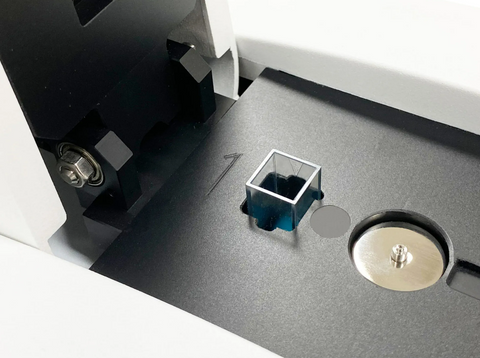

  • Micro-volume and Cuvette Sample Measurements in One.
  • High accuracy, precision and repeatability through spectrometer-based technology.

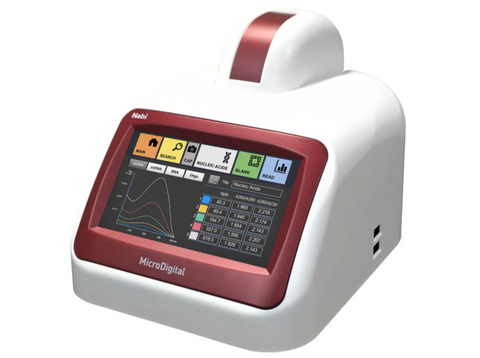

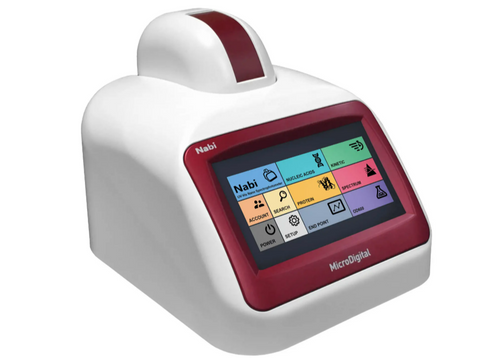

  • Stand-alone system with 7-inch touch LCD.
  • Compact and light design with intuitive and user-friendly interface.
  • Featuring wide range of measurement modes for various samples; nucleic acids, proteins and etc.
  • Simple data transfer or back-up, and the system upgrade via USB flash drive.
  • High speed spectrum reading (5 seconds), accurate detection (less than +/- 0.0002).
  • End point & kinetic mode in detection.
  • Quick boot: no lamp warm-up time.

Technical Data:

SKU# MA0610
General Specifications
Light Source Xenon Flash Lamp
Detector CCD (2,048 Pixels)
Wavelength 190-1100 nm
Wavelength Accuracy 1 nm
Spectral Resolution 0.3 nm
Dimension, LxWxH 220*280*220 mm
Weight 5 kg
Voltage 100-240 V, 50-60 Hz
Power Consumption 80-100 W
Warranty One year
LCD Touch Panel 7.0 inch
Nano Volume Specifications
Absorbance Precision  1% at 100 ng/µl
Absorbance Range 0-300 Abs. (10nm equivalent)
Detection Limit 2 ng/µl (dsDNA)
Maximum Concentration 15,000 ng/µl (dsDNA)
Measurement Time 5 sec
Minimum Sample Size 1 µl
Path Length 0.01-1.2 mm (Auto-ranging)
Cuvette Specifications
Beam Height 8.5 mm
Absorbance Range 0.002-2.0 Abs.
Measurement Time 3 sec

MSE Supplies is an authorized distributor of MicroDigital Co. LtdMicroDigital is one of the leading bio-instrument and diagnostic kit manufacturing companies in South Korea. They provide various types of systems and solutions for different types of biomedical industry.
