MSE PRO Double Beam UV/VIS Spectrophotometer Accessories, 190-1100nm

  • $ 65700
  • Save $ 16500


MSE PRO Double Beam UV/VIS Spectrophotometer Accessories, 190-1100nm

Available for the MSE PRO Double Beam UV/VIS Spectrophotometer are extra lamps and cuvettes. Ordering information below.

Accessories for Model MA0616 (1.8nm Bandwidth)

SKU #  Description
MA0616-1 Deuterium Lamp for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 1 ea.
MA0616-2 Tungsten Lamp for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 1 ea.
MA0616-3 Quartz Cuvettes for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 2 ea.
MA0616-4 Glass Cuvettes for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 4 ea.



Accessories for Model MA0618 (0.5/1.0/2.0/4.0nm Bandwidth)

SKU #  Description

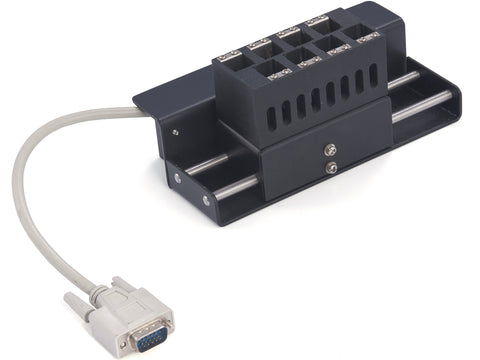

MA0618-1 Automatic 8 Rack for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 1 ea.

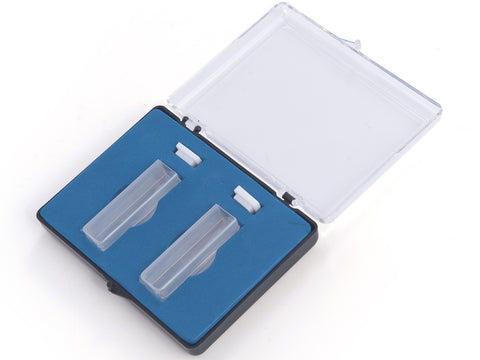

MA0618-2 10mm quartz cuvette for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 1 ea.

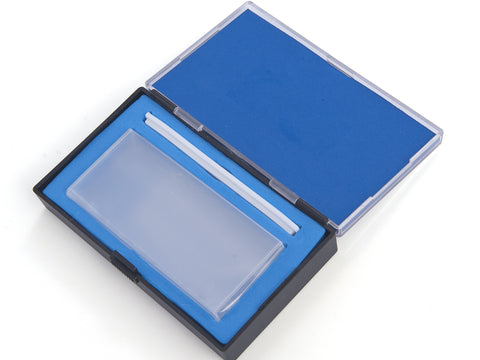

MA0618-3 100mm quartz cuvette for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 1 ea.
MA0618-4 100mm Single Hole Rack for MSE PRO™ Double Beam UV/VIS Spectrophotometer, 2 ea.



MSE Supplies offers a Double Beam UV/VIS Spectrophotometer with Smart Touch Screen, 190-1100 nm. It is widely used in pharmaceutical, medical and health, chemical industry, energy, machinery, metallurgy, environmental protection, geology, food, biology, materials, agriculture, forestry, fishery and many other industriesIt is a popular analytical instrument in physical, chemical and biological laboratories, and plays an important role in the fields of teaching, scientific research, quality control in production, raw materials and product inspection.

Spectral Bandwidth

Spectral bandwidth is defined as the width, at half the maximum intensity, of the band of light leaving the monochromator. Spectral bandwidth of a spectrophotometer is related to the physical slit-width and optical dispersion of the monochromator system. A narrower bandwidth will result in a higher resolution in the measurements and scans, ultimately improving the separation of the peaks for identification and reduces the signal-to-noise ratio.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Features of MSE PRO™ Double Beam UV/VIS Spectrophotometer, 190-1100 nm

  • It is equipped with dual beam optical system with precision vertical-type dual optical path and dual detector
  • High performance grating greatly reduces the stray light and improve the stability and reliability of device
  • 10-inch large touch screen, built-in 32G memory, supporting bluetooth connection
  • Powerful data analysis system with internal computer host could realize multi functions independently such as establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning, kinetics, DNA/Protein test, multi-wavelength analysis, and also support data printing
  • Optical system adopts suspension design. All optical parts are independently fixed on the 16mm thick aluminum deformation-free base to avoid the impact of bottom plate deformation and outside vibration on optical system. This premium design greatly improves the stability and reliability of the instrument
  • Convenient data storage and printing function. It could be directly connected to the printer for A4 format data and graph printing
  • Automatic power on self-test and system positioning function could inspect and calibrate the deviation before using
  • All test data and analysis report could be exported to USB disk directly
  • The difference between SKU# MA0616/MA0617/MA0618 is the spectral bandwidth, which is 1.8 nm/1.0 nm/selectable, respectively

Please Contact Us for Available Model and Specifications.



Specifications

SKU# MA0616, MA0617, MA0618
Optical System Double Beam
Wavelength Range 190-1100 nm
Bandwidth

MA0616: 1.8 nm

MA0617: 1 nm

MA0618: 0.5/1.0/2.0/4.0 nm

Wavelength Accuracy ±0.1 nm (D2 656.1 nm), ±0.3 nm @ full range ≤0.1 nm
Wavelength Repeatability ≤0.1 nm
Photometric Accuracy ±0.2 % T (0-1009 % T), ±0.002 Abs (0-0.5 Abs, ±0.004 Abs (0.5-1.0 Abs)
Photometric Repeatability ≤0.1 % T (0-100 % T), 0.001 Abs (0-0.5 Abs), 0.002 Abs (0.5-1.0 Abs)
Photometric Range -0.3-3.0 A, 0-200 % T
Stability ±0.0004 A/h @ 500 nm
Baseline Flatness ±0.001 A/h
Stray Light ≤0.03 % T @ 220 nm, 360 nm
Data Output Port USB
Display 10 Inch Smart Touch Screen
Lamps Tungsten Lamp & Deuterium Lamp
Detector Silicon Photodiode
Power Requirements AC 110 V / 60 Hz
Dimension 630*430*210 mm
Weight 28 kg



Standard Accessories:

Item Description  Quantity
1 Spectrophotometer 1 Set
2 1 cm Glass Cuvette 4 Pcs
3 Power Cord 1 Pcs
4 User’s Manual 1 Pcs
5 1 cm Quartz Cuvette 2 Pcs
6 Dust Cover 1 Pcs
