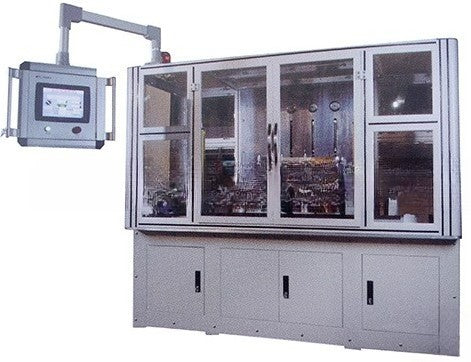

MSE PRO Automatic Vacuum Liquid Injection Machine for Battery and Supercapacitor Pilot Research
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE Supplies offers Automatic Vacuum Liquid Injection Machine which can be used for vacuum liquid injection of supercapacitor and lithium-ion battery. This equipment adopts annular guide rail for material transportation mechanism coordinated with servo manipulator to realize automatic feeding.
Main feature:
- Precision weighing technology to control battery weight before and after injection to ensure liquid injection quality.
- Laser position technology to automatically control battery positions for liquid injection. The liquid injection height can be adjusted.
- Security guard shield and safety light grid for safe and reliable operation.
- Dust-proof glass cover for the battery cases.
- PLC control and touch screen display make the operation more convenient and quick.
- Data storage for the traceability and quality control of production.
This machine can be customized according to the battery/supercapacitor shape and dimension. Other customizable options such as power source, electrolyte injection and vacuum are also available upon request.
| SKU | BR0340 |
| Power source | AC110V/50HZ (Customizable) |
| Air source | 0.4~0.7MPa |
| Battery/Supercapacitor dimension |
Φ60*100~140(H)mm 79(L)*56(W)*200~230(H)mm (Customizable) |
| Pumping speed of the vacuum pump | ≥8L/min |
| The minimum vacuum | -98kPa |
| Electrolyte weight resolution | 0.1g |
| Electrolyte injection precision | ±1% |
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
