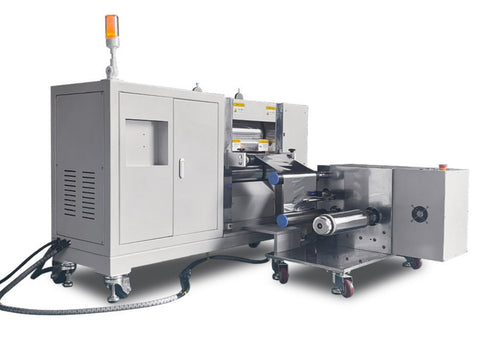

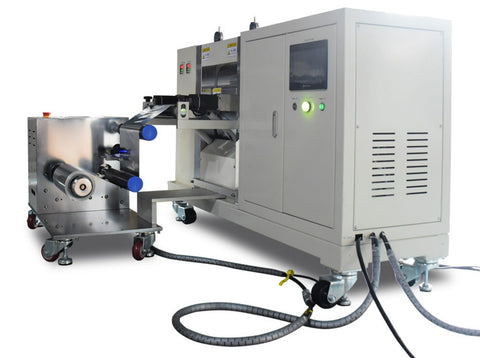

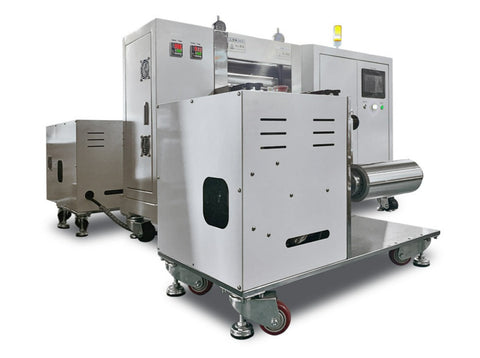

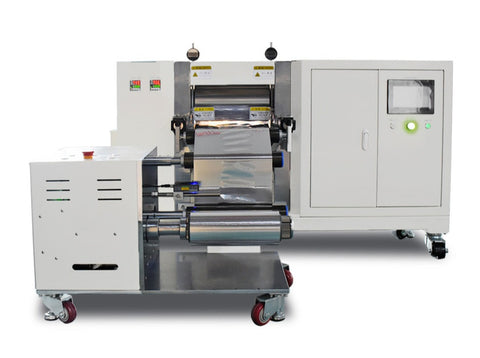

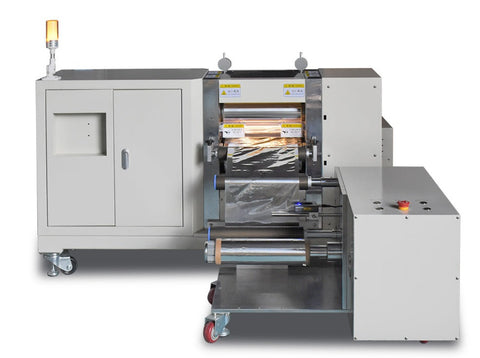

MSE PRO 40T Electric Electrode Calendaring Machine for Pilot Battery Production
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE Supplies offers a electric electrode calendaring machine for the high precision rolling of cathode and anode electrodes in the battery industry. The equipment is rolled in horizontal and vertical uniformity.
Main features
- Patented hydraulic balance rolling mechanism, stable pressure holding, good horizontal and longitudinal rolling uniformity
- Cold rolled chromium-molybdenum roller material with high internal and external hardness and good wear resistance
- Inclined block roll gap adjustment device, digital display micrometer display
- PLC, HMI operation, and easy to control each parameter settings
The roller working width and power supply can be customized upon request.

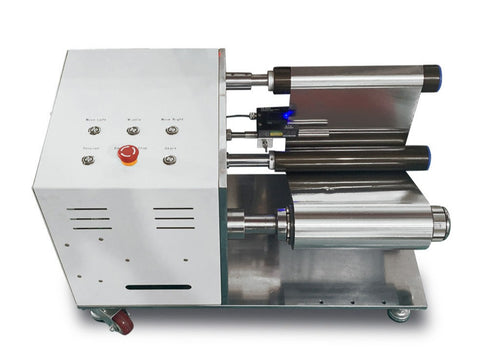

The heating function and unwinding and rewinding device can be optional.
| SKU | BR0336 |
| Voltage supply | Single phase 110VAC ± 10%, frequency 50Hz/60Hz, 2KW |
| Roller diameter | 196mm |
| Roller width | 330mm (Customizable) |
| Electrode uniformity | ±0.002mm |
| Roller gap | 0~3mm |
| Roller precision | ≤±0.002mm |
| Rolling speed | 0.3~4m/min |
| Roller materials | HRC65~70, hardness layer thickness ≥15mm, round beating better than ±2μm Roller material 9Cr3Mo, hard chromium plating surface thickness ≥0.15mm |
| Max working pressure | 40Tons |
| Dimension | 400x500x300mm |
| Weight | 550kg |
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
