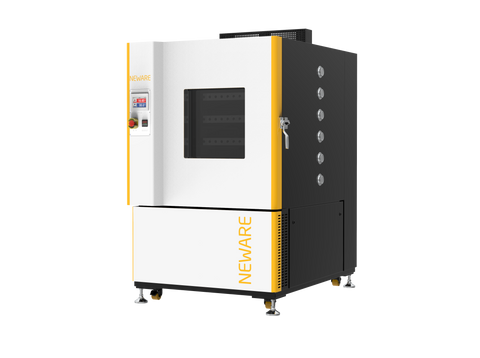

Neware MGDW-1000-70 Environment Chamber for Battery Reliability Test
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
Neware MGDW-1000-70 environment chamber is designed for battery reliability and safety test. It can simulate the environment with different temperature and humidity. Cable port is predrilled for cable connection which enables the in situ battery performance measurements. It can also be used for the environmental test of electronic devices, semiconductors and solar cells.
We offer three temperature range: -70℃~150℃, -40℃~150℃ and -20℃~150℃. The internal volume also can be customized from 150L to 1000L. Please contact MSE Supplies for your specific need.
- Large Volume: 1000L
- Large Temperature Range: -70℃~150℃
- Humidity range: 25~98% R. H.
- Predrilled cable port for in situ measurement
Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified.
MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
|Power||AC 380 ± 10 % three phase five wires (L1+L2+L3+N+E)|
|Heating Time||-70℃→150℃ ≤75 min|
|Cooling Time||25℃→-70℃ ≤80 min|
|Humidity Range||25~98 R. H.|
|Humidity Deviation||±3.0%RH (>75%RH); ±5.0%RH (<=75%RH)|
|Warranty||Limited 1 year warranty. Lifetime technical support.|
