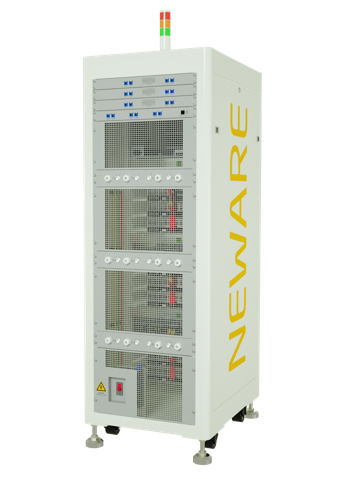

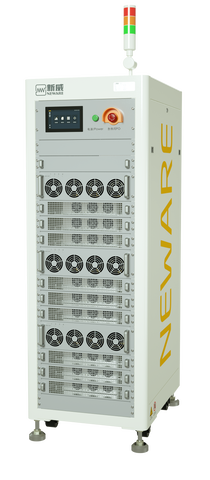

Neware CE-6012 120V50A 12 Channels Module Pack Tester

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

Product Details:

CE-6012 regenerative battery module pack tester is designed for secondary battery charge/discharge test, specialized in testing high power module/pack battery. It has a high dynamic response speed and accuracy. The included regenerative function significantly reduces power consumption during the discharge test. CE-6012 has 12 paralleled 120V50A channels. The parallel function increases the max current in real tests and saves cost for large module pack test. With powerful BTS8.0 software which independent develop by Neware, you can run the driving simulation test, HPPC test, DCIR test, capacity test, and other tests required high sample data rate, high accuracy, and fast response speed.

Product Features:

  • Current response time: ≤5ms
  • Current accuracy: 0.05% FS
  • Easy maintenance
  • Multiple Protection

The number and maximum current of channel can be customized up request. Please contact MSE Supplies for discussion.

About Neware

Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified.

MSE Supplies is an authorized distributor of Neware in the USA. The product image is for reference only. The actual product appearance is based on the product configuration.

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

Product Specifications:

SKU BR0225
Neware Model CE-6012 120V50A
Channel 12 independent
Power 380V±53V, 50/60±5Hz
Power Consumption 72kW
Voltage Range Dual range: 60V and 120V
Voltage Accuracy ± 0.02% FS
Current Range Dual range: 15A and 50A
Current Accuracy ± 0.05% FS
Current Switch Time (-90% to 90% load) ≤10ms
Current Response Time (-90% to 90% load) ≤5ms
Dimensions 600x1800x800mm
Weight 320kg
Warranty Limited 1 year warranty. Lifetime technical support
Specification link Neware CE-6012 120V50A
