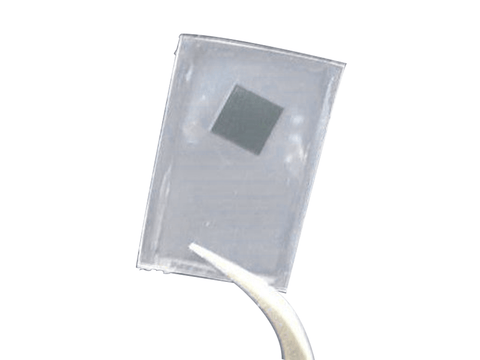

Nb:SrTiO3 (Nb:STO) Niobium Doped Strontium Titanate Crystal and Substrates

  • £6600


Nb: SrTiO3 (Nb:STO), Niobium doped Strontium Titanate Crystal and Substrates

Main Parameters
Nb:SrTiO3
A
B
C
D
Nb Concentration (wt%,)
Customized
0.7
0.5
0.05
Resistivity (ohm-cm)
Customized
0.007
0.05
0.08
Characteristics
Nb: SrTiO3 and SrTiO3 have a similar structure, but Nb: STO has an high electrical conductivity. Typical STO are insulators

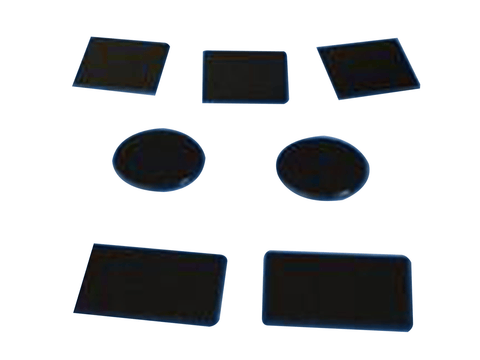

Size
5x5 mm,10x10 mm, 15x15 mm, 20x20 mm,
1 inch diameter, or customized sizes upon request
Thickness
0.5 mm or 1.0 mm or customized thickness
Surface polishing
Single side polished (SSP) or double side polished (DSP)
Crystal orientation
(100), (110), (111)
Angle of crystalline
Special size and orientation are available upon request
Ra:
<0.5 nm (5x5 um area)
Package
Packing in class 1000 clean room with class 100 grade plastic bag

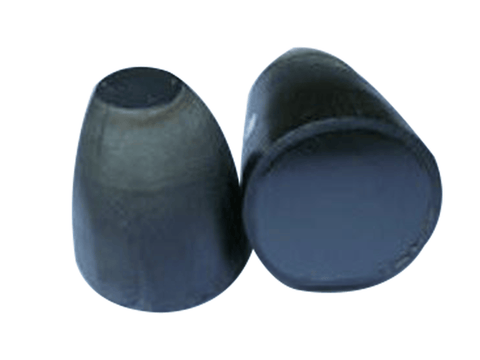

Niobium (Nb) doped SrTiO3 (NSTO) single crystal has a similar structure to SrTiO3. NSTO crystals have different electrical resistivity values with depending on the Nb doping concentration.

Please contact us to order the SrTiO3 substrates and products with the exact specifications that meet your requirements.
