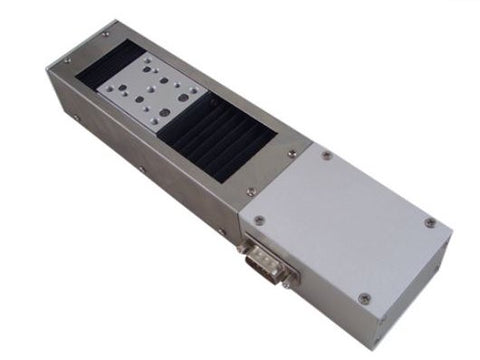

MSE PRO™ provides Stepper Motorized Stainless Steel Translation Stages (Travel 50mm, 45×34mm). Motorized translation stages are precision positioning devices designed to provide automated linear motion with high accuracy and repeatability. These stages are equipped with stepper or servo motors, allowing precise control over position, speed, and acceleration. Ideal for applications in research, manufacturing, and inspection, motorized translation stages are commonly used in fields such as photonics, microscopy, semiconductor testing, and automation systems. They feature robust construction, low backlash, and smooth motion, ensuring reliable performance even under demanding conditions. With a variety of travel ranges, load capacities, and control options, these stages can be easily integrated into complex motion systems, enabling precise alignment and positioning in both single-axis and multi-axis configurations.
Key Features
High precise ball screw and cross roller guide provides high-performance and high-accuracy.
Low-profile ,high-accuracy and apply to low bearing capacity, low speed.
The structure of crossed-roller bearing requires the precise movement.
Original position and limit switches are at both ends which can supply the precision positioning and protection.
Applies to use in single axis or assemble into multi-axis stages.
TravelRange
50 mm
Table Size
45×34mm
Bearing Construction
Grinding Lead screw（0.5 mm of leading)
Travel Guide
High Precision Cross Roller Guide
Stepper Motor (1.8°)
28STH30-0604A
Base Material
Stainless Steel
Surface Treatment
Anodizing
Load Capacity
5 kg
Weight
3 kg
Resolution
5 μ (no subdivision) 0.25 μ ( 20 subdivisions)
Maximum speed
10mm /sec
Repeat positioning accuracy
2.5μ
Absolute positioning accuracy
8µ
Straightness
8µ
Parallelism
15µ
Pitch
25″
Swing
20″
Return clearance
1µ
Lost Step
1µ
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Pleasecontact usfor customization or bulk orders.
