MSE PRO Semi-Auto Battery Grooving Machine

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

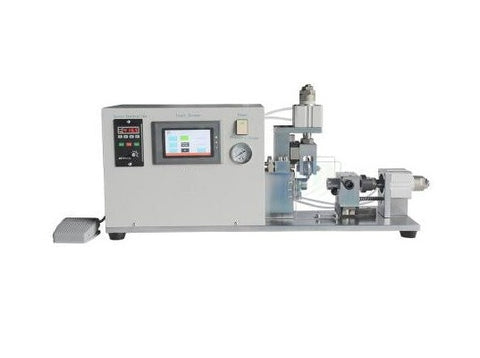

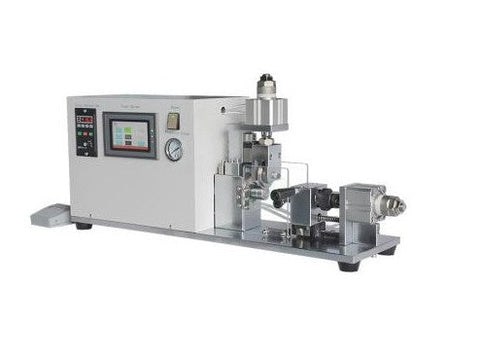

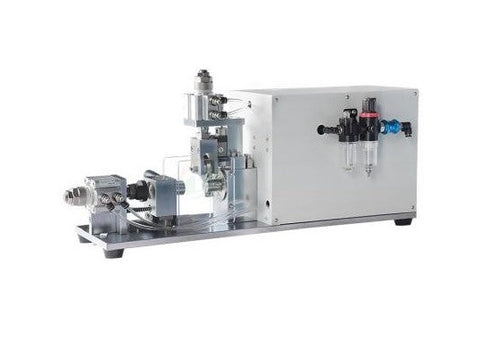

MSE Supplies offers a benchtop semi-Auto Battery Grooving Machine. It is suitable for the uniform automatic rolling groove of cylindrical steel shell (or capacitor aluminum shell) equipped with battery cell core for battery research. It can be used for grooving various cylindrical cell cases including: CR123,18650 26650, 32650 cells with customized grooving die

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

Specifications

Model BR0286
Power 110VAC, 140W
Included die

Compatible for CR123,18650 26650, 32650,21700 can be customized

Rolling groove depth 1.2~2.0mm (adjustable)
Rolling groove width 1.1~1.5mm (according to the knife, can be customized)
Precision ±0.1mm
Production capacity Semi-auto 400EA/H
Compressed air 0.5MPa~0.7MPa
Product size (L*W*H) 740*250*350mm
Weight 37kg
