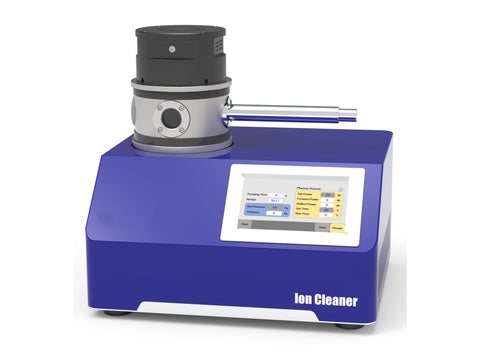

MSE PRO Plasma Cleaner for TEM Sample Preparation
MSE PRO™ Plasma Cleaner for TEM Sample Preparation
MSE Supplies offers a Plasma Cleaner, that is ideal for lab TEM sample preparation. It uses a high-performance vacuum dry pump to achieve a clean vacuum pressure of <50 Pa in less than 2 minutes. It employs a high-quality constant power RF power supply to ensure process repeatability. The induction RF discharge mode significantly reduces thermal impact and ion bombardment damage to the samples. It is particularly suitable for plasma cleaning, surface activation, and hydrophilization of TEM or SEM samples that are sensitive to temperature or bombardment.
The touch screen enables automatic control, making it a plug-and-play system.
MSE Supplies is a leading Sputtering Targets supplier and offers custom-made high purity sputtering targets.
Technical Specifications
| SKU# |
MA0606 |
| Chamber Size | ~Ø 150*90 mm |
| Chamber Material | Stainless steel chamber |
| Pumping Speed | > 0.7 m3/h |
| Sputtering Power | Target size: Ø 80 mm, adjustable power range: 10-50W, 13.56 MHz |
| Pumping Time | < 2 mins |
| Ultimate Vacuum | < 50 Pa |
| Working Pressure | 60-150 Pa |
| Gas Control | Constant pressure closed loop control |
| Operation Method | Screen Touch Control |
| Weight | about 20 kg |
| Dimension | 430*385*410 mm |
| Supply Voltage | 110V (220V, other voltages are possible on request) |
| Power Consumption | < 300 W |
| Cooling Method | Air cooled |
| Warranty | One-year limited warranty with lifetime product support |
