MSE PRO Mini 1x4 Mechanical Optical Switch - MSE Supplies LLC

MSE PRO Mini 1x4 Mechanical Optical Switch

SKU: OSW020

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

-Request a Quote

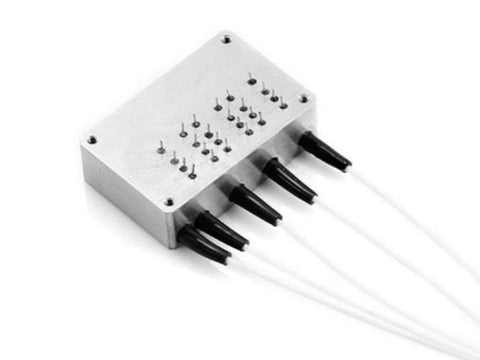

MSE PRO™ Mini 1x4 Mechanical Optical Switch

MSE Supplies offers Mini 1x4 Mechanical Optical Switch. The switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved by using a patented opto-mechanical configuration activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed.

The switch has integrated electrical position sensors, and the new material based advanced. design significantly reduces moving part position sensitivity, offering unprecedented high stability and longevity, as well as an unmatched low cost. Electrical driver is also available. The switch is bidirectional.

Parameters

1x4 Mini Switch

Unit

Min

Typical

Max

Operation Wavelength

nm

1260 ~ 1610nm

Insertion Loss 1

dB

0.4

0.6

1.0

Wavelength Dependent Loss

dB

0.2

0.4

Polarization Dependent Loss

dB

0.05

0.1

0.2

Return Loss

dB

>50

Cross Talk

dB

>50

Switching Time

ms

3

10

Repeatability

<±0.05

Operating Voltage

VDC

3V or 5V

Voltage Pulse Width (Latching)

ms

Typical: 20

Operating Current³

Latching

mA

<26

Non-Latching

<36

Switching Type

Latching / Non-Latching

Operating Temperature 2

-5~+70

Optical Power Handling

mW

Typical: 300mW  Max:500mW

Storage Temperature

℃

-40~+85

Fiber Type

SMF-28

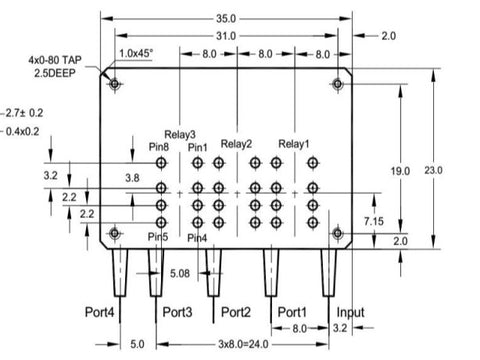

Package Dimension

mm

35L x 23W x 10H


Electrical Driving

Latching

Optcial Path

Relay

Electrical Drive

Status Sensor

Pin 1

Pin 8

Pin 2-3

Pin 3-4

Pin 5-6

Pin 6-7

Input → Port 1

Relay 1

5V Pulse

GND

Open

Close

Close

Open

Relay 2, 3

N/A

N/A

--

--

--

--

Input → Port 2

Relay 1

GND

5V Pulse

Close

Open

Open

Close

Relay 2

5V Pulse

GND

Open

Close

Close

Open

Relay 3

N/A

N/A

--

--

--

--

Input → Port 3

Relay 1, 2

GND

5V Pulse

Close

Open

Open

Close

Relay 3

5V Pulse

GND

Open

Close

Close

Open

Input → Port 4

Relay 1,2,3

GND

5V Pulse

Close

Open

Open

Close

 Non-Latching

Optcial Path

Relay

Electrical Drive

Status Sensor

Pin 1

Pin 8

Pin 2-3

Pin 3-4

Pin 5-6

Pin 6-7

Input → Port 1

Relay 1

5V Pulse

GND

Close

Open

Open

Close

Relay 2, 3

No Power

Open

Close

Close

Open

Input → Port 2

Relay 2

5V Pulse

GND

Close

Open

Open

Close

Relay 1, 3

No Power

Open

Close

Close

Open

Input → Port 3

Relay 3

5V Pulse

GND

Close

Open

Open

Close

Relay 1, 2

No Power

Open

Close

Close

Open

Input → Port 4

Relay 1,2,3

No Power

Open

Close

Close

Open

Ordering Information

Type

Wavelength

Control Model

Volatage

Fiber Type

Fiber Diameter

Fiber Length

Connector

14=1x4

41=4x1

1=1060nm

2=C+L

3=1310

4=1410

5=1550

35=1310&1550

B=1260~1620

X=Special

L=Latching

N=Non- Latching

3=3V

5=5V

1=SMF-28

X=Special

25=250um

90=900um

X=Others

1=0.5m

2=1m

3=1.5m

X=Others

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=ST/UPC

6=ST/APC

7=LC/UPC

8=LC/APC

MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
