MSE PRO Benchtop Dip Coater
MSE PRO™ Benchtop Dip Coater
MSE Supplies offers a Benchtop Dip Coater, which is often used to coat high quality films. Dip coating process usually includes four main steps: immersion, dwelling, withdrawal, and drying. The dip coating thickness can be controlled by adjusting the speed of substrate withdrawal from the solution (like slurry). The dip coater's high precision stages is also used for our MSE PRO Benchtop Spin Coater. It is widely used for thin film electronics, sol-gel coating, protein coating, and many other applications.
Please Contact us today to discuss your needs.

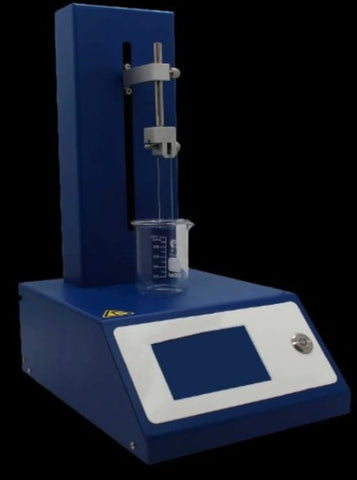

The product figure is for reference only. The actual product may look different based on the product configuration.
|Withdrawal Rate||1~20000 um/s|
≤ 0.5 %
|Maximum Travel Distance||150 mm|
|Maximum Number of Cycles||9999 cycles|
|Maximum Timer Duration||9999 sec|
Variable withdrawal speed, repeat cycles, crash detection
|Power supply||AC 110/220 V|
