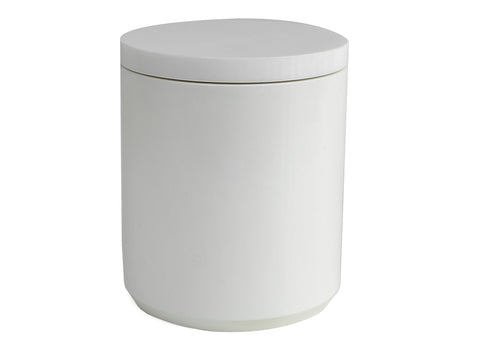

MSE PRO 500 mL Y-Stabilized Zirconia Milling Jar for Planetary Mills

  • £1,10700
  • Save £13400

Specifications for Zirconia Milling Jar

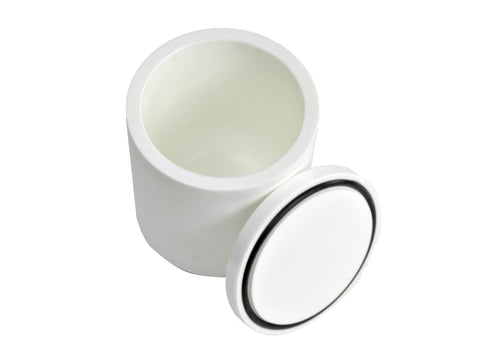

  • Each jar set includes grinding jar, jar lid, rubber sealing gasket, and a milling media set (BA0707) specifically designed for this jar.

  • Cost-effective, low wear and long lifetime.

  • High specific gravity, high milling efficiency.

  • Chemical resistant to acid and solvents.

  • Smooth, easy to clean, minimum wearing to the equipment.

  • Excellent toughness, high impact resistance, no broken beads.

  • Mainly used for planetary ball mill machines.

    Features of Zirconia Milling Jar

      • Item No.: JA0210
      • Material: Y stabilized Zirconium Oxide -ZrO2
      • Jar Volume: 500 mL
      • Dimensions: Height 119 mm, OD 100 mm, ID 83 mm, Wall Thickness 17 mm
      • Max Loading Capacity: 2/3 capacity of the grinding jar
      • Density: 6.06 g/cm3
      • Color: ivory white
      • Shape: cylindrical
      • Hardness: >89 HRA
      • Abrasion Resistance: very good
      • Suitable for: fibrous, abrasive samples
      • Max Working Temperature: 320 oC
      • Attachment: lid and rubber sealing gasket
      • Grind Balls: zirconium oxide balls
      • Grind Ball Sizes: 1 mm - 50mm beads are available

      Did You Know?

      A stainless steel sleeve can be added to convert to rotary mill (roller mill) application, please contact us for specific requirement.
