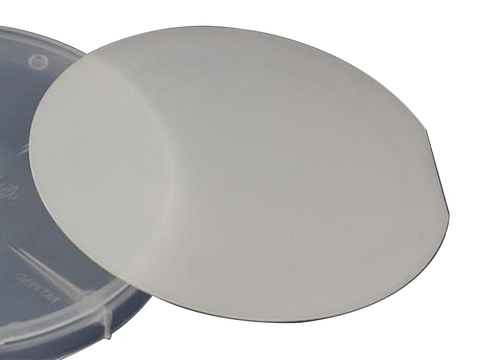

MSE PRO AlGaN/GaN HEMT on 2 inch Sapphire Wafer, Wafers, MSE Supplies LLC, MSE Supplies

MSE PRO 4 inch GaN Gallium Nitride Template on Sapphire (0001) Blue LED Wafer

SKU: WA0273

$ 516⁹⁵
Save $ 62⁰³

MSE PRO™ 4 inch GaN Gallium Nitride Template on Sapphire (0001) Blue LED Wafer

Other layer structures can be custom made upon request. Please contact us for a quote.

Product SKU# WA0273 for SSP, WA0274 for DSP

Substrate
Type	Flat Sapphire
Polish	Single side polished (SSP) / Double side polished (DSP)
Dimension	100 ± 0.2 mm
Orientation	C plane (0001) off angle toward M-axis 0.2 ± 0.1°
Thickness	660 ± 25 µm
Epilayer
Structure	0.2µm pGaN / 0.5µm MQWs / 2.5µm nGaN / 2.0µm uGaN
Total Thickness	5.5 ± 0.5 µm
Roughness (Ra)	< 0.5 nm
Dislocation Density	< 5 × 10^8 cm²
Wavelength (Blue)	465 ± 10 nm
Wavelength FWHMs (Blue)	< 25 nm
General
Cut-in Voltage @1µA (Blue)	2.3-2.5V
Usable Area	>90% (edge and macro defects exclusion)
Package	Packaged in a cleanroom in a single wafer container
