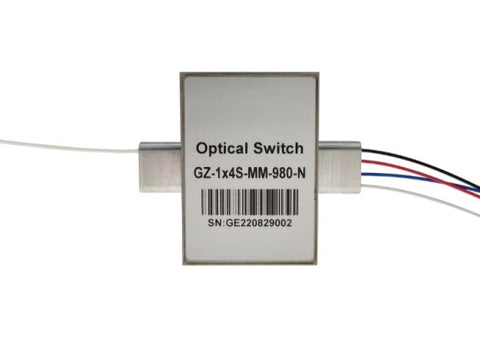

MSE PRO Mini 1x4 Optical Switch - MSE Supplies LLC

MSE PRO 1x4S Optical Switch (for Special Wavelength and Large Core Fiber)

SKU: OSW011

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

-Request a Quote

MSE PRO™ 1x4S Optical Switch (for Special Wavelength and Large Core Fiber)

MSE Supplies offers 1x4S Optical Switch (for Special Wavelength and Large Core Fiber). It is used 105/125um large core fiber, which support 780nm, 850nm, 980nm, 1060nm, 1310nm, 1550nm or customized wavelength. The 105/125um fiber 1x4 Optical Switches is with Low insertion loss, High stability and Reliability and High Cross talk. Which widely used in Medical, Fiber sensor, Research, Laser and Aerospace etc.

Key Features

Parameters

Parameters

 Unit OSW011

Operating Wavelength

nm

780, 980, 1060, 1310,1550 etc

Insertion Loss

dB

≤1.5

Wavelength Dependent Loss

dB

≤0.40

Polarization Dependent Loss

dB

≤0.05

Temperature Dependent Loss

dB

≤0.20

Return Loss

dB

SM≥50           MM≥30

Cross Talk

dB

SM≥55           MM≥35

Switch Time

ms

≤8

Repeatability

dB

≤±0.02

Durability

times

≥107

Operating Voltage

V

3 or 5

Switch Type

Non-Latching/Latching

Operating Temperature

℃

－20~＋70

Storage Temperature

℃

－40~＋85

Optical Power

mw

500, 1000, 2000, 5000, 10000 etc

Dimension

mm

52.7.0L×37.2W×10.0H


Pins

Type

Optical

Route



Relay

Electric Drive

State Sensor

1x4S

Pin 1

Pin 5

Pin 6

Pin 10

Pin 2‐3

Pin 3‐4

Pin 7‐8

Pin 8‐9

Non-Latching

COM‐ Port 1(Black)

Relay1

V＋

‐‐

‐‐

GND

Open

Close

Close

Open

Relay2

V＋

‐‐

‐‐

GND

Open

Close

Close

Open

Relay3

V＋

‐‐

‐‐

GND

Open

Close

Close

Open

COM‐ Port 2 (red)

Relay1

‐‐

‐‐

‐‐

‐‐

Close

Open

Open

Close

Relay2

V＋

‐‐

‐‐

GND

Open

Close

Close

Open

Relay3

‐‐

‐‐

‐‐

‐‐

Close

Open

Open

Close

COM‐ Port 3(blue)

Relay1

‐‐

‐‐

‐‐

‐‐

Close

Open

Open

Close

Relay2

‐‐

‐‐

‐‐

‐‐

Close

Open

Open

Close

Relay3

V＋

‐‐

‐‐

GND

Open

Close

Close

Open

COM‐ Port 4(White)

Relay1

‐‐

‐‐

‐‐

‐‐

Close

Open

Open

Close

Relay2

‐‐

‐‐

‐‐

‐‐

Close

Open

Open

Close

Relay3

‐‐

‐‐

‐‐

‐‐

Close

Open

Open

Close

Ordering Information

Type

Mode

Wavelength

Voltage Type

Control Model

Working Power

Fiber Type

Fiber Diameter

Fiber Length

Connector

1x4S

S=SM

M=MM

780=780nm

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

980=980nm

1060=1060nm

S=Specify

3=3V

5=5V

L=Latching

N=Non- Latching

N=500mw

1=1W

2=2W

5=5W

10=10W

S=Specify

5=50/125

6=62.5/125

9=9/125

1=105/125

S=Specify

25=250um

90=900um

20=2.0mm

S=Specify

05=0.5m

10=1.0m

S=Specify

00=None

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

LP=LC/PC

LA=LC/APC

S=Specify

MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
