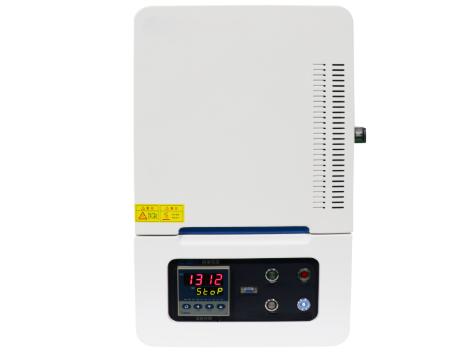

MSE PRO 1700°C Desktop Muffle Furnace, 18L Chamber Volume
SKU: MA0552
MSE PRO™ 1700°C Desktop Muffle Furnace, 18L Chamber Volume
The MSE PRO™ 1700°C Desktop Muffle Furnace, 18L Chamber Volume features an integrated design combining the furnace body with an intelligent temperature control system. Heating elements are arranged on three sides—left, right, and top—providing rapid heating and uniform temperature distribution. A digital display controller ensures high-precision temperature regulation, minimizing manual errors and enhancing operational efficiency. Additionally, the furnace is equipped with an emergency stop button and over-temperature alarm to ensure safe operation.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
-
The insulation material is made of vacuum-formed alumina fiber inorganic material, offering excellent thermal insulation and environmental protection.
-
Utilizes modular PID temperature control with an accuracy of ±1°C.
-
The furnace body features a double-layer air cooling structure. Even at high operating temperatures, the exterior surface remains below 60°C for safe handling.
-
Constructed using a combination of advanced insulation materials, resulting in a compact furnace volume and significantly reduced energy consumption
- Equipped with an emergency stop button and over-temperature alarm function to enhance operational safety.
Technical Specifications:
Model | MA0552 |
Maximum temperature | 1700℃ |
Operating temperature | 1600℃ |
Operating pressure | Atmospheric |
Chamber Volume | 18L |
Chamber Size | 300*250*250mm |
Heating Rate | 0-10 ℃/min |
Recommended heating rate | ≤1400℃, 0-10℃/min 1400-1600℃, 0-5℃/min >1600℃, 0-2℃/min |
Heating element | 1800 grade molybdenum disilicide (MoSi₂) heating element |
Temperature control accuracy | ±1℃ |
Thermocouple | K type |
Rated power | 9 kW |
Adaptive power | AC220V/60 Hz |
Weight | 130kg |
Dimension | 760*750*1050mm |
Attachment parts | Door Plugs, Crucible tongs, gloves, tray |
MSE Supplies offers Economy Box Furnaces with different sizes and Tmax . For more information, please contact us.
