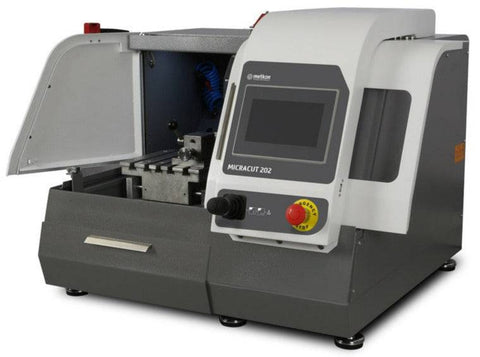

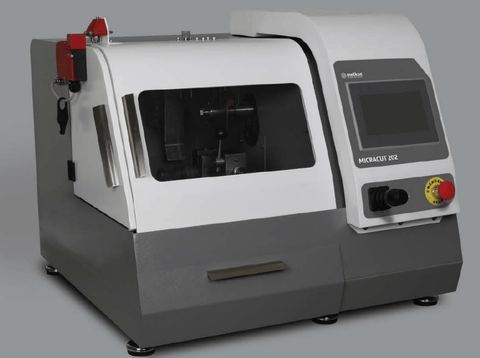

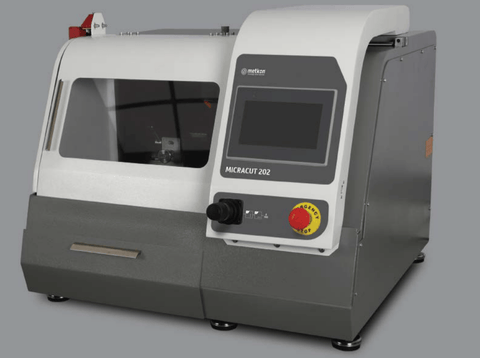

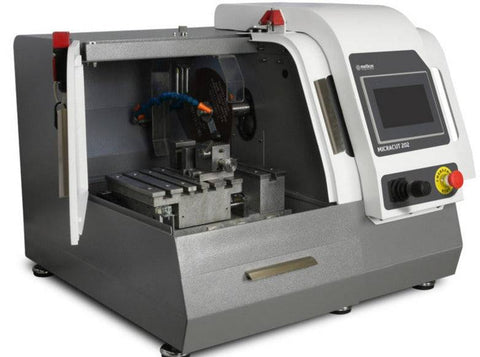

Metkon Automatic High-Speed Precision Cutting Machine MICRACUT 202(-AX)

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE Supplies offers an Automatic High-Speed Precision Cutting Machine MICRACUT 202(-AX) from Metkon Instrument Inc. MICRACUT 202 precision cutters are used for precise and deformation-free cutting of “Metals, Ceramics, Electronic, Components, Crystals, Composites, Biomaterials, Sintered Carbides, Minerals, etc.” MICRACUT 202 has its place in virtually any metallurgical, geological, electronics, research, biomedical or industrial laboratory. The applications are endless.

Country of Origin: Made in Turkey

Manufacturer: Metkon Instruments Inc.

Main Features:

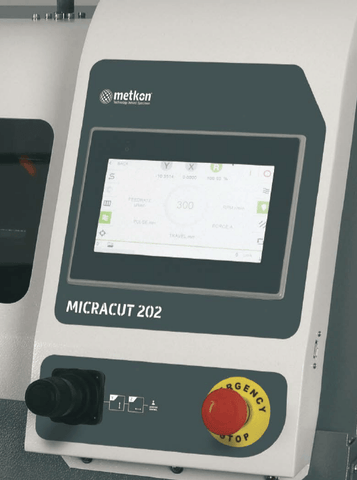

  • Programmable with 7" HMI touch screen control
  • Siemens PLC control unit
  • Automatic table feed cutting system
  • Programmable with colored LCD display of cutting parameters

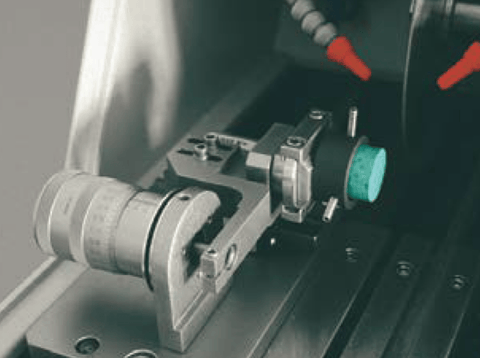

  • Accurate and motorized positioning of the specimen in X-Y and Z axis with a digital readout on the LCD (X-axis for plane parallel cutting is optional)
  • Ergonomic joystick with adjustable  speed control
  • Integrated feed path control
  • Power dependent adjustable feed rate
  • Variable cutting force
  • Rapid pulse cutting mode
  • Bar graph overload display
  • Powerful 1.1 kW cutting motor
  • Variable cutting speed 100-5000 rpm
  • Electronic brake system
  • Cutting capacity up to 75 mm solid stock
  • Cut-off wheels up to Ø200 mm
  • Twin T-slotted table (Y-direction only) made of stainless steel
  • Bottom part as rugged alloy base casting
  • Extraordinary access for easy handling with sliding door and side openings

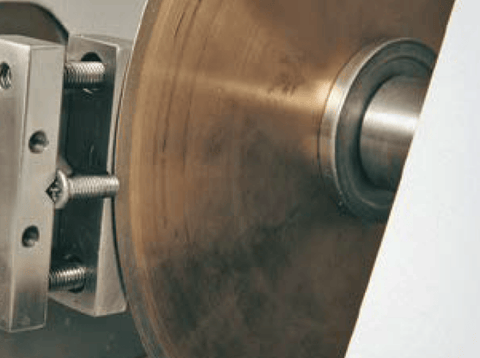

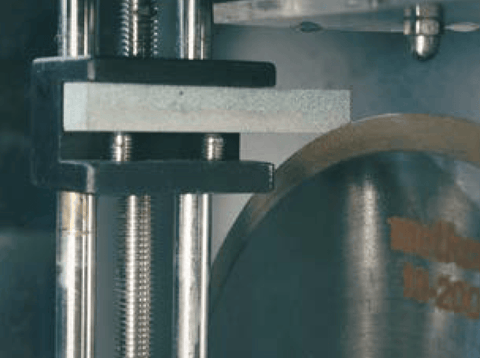

  • Ability to mount diamond cup grinding wheel for thin section

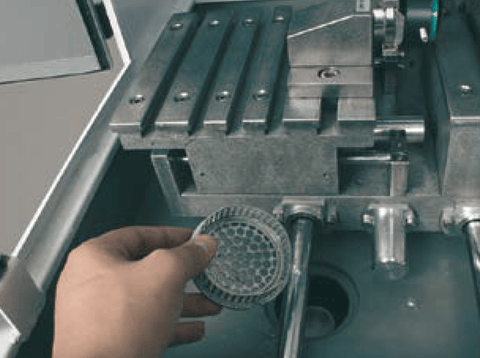

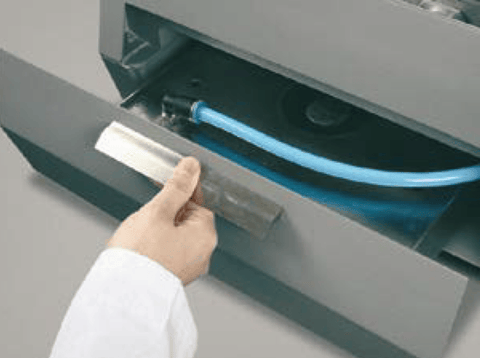

  • Built-in recirculation cooling unit
  • Extra advanced cutting methods: "Rapid Pulse Cutting, Instafeed Cutting Automatic Table Feed Cutting"
  • Ready for operation
  • Includes a standard set of cutting consumables composed of:

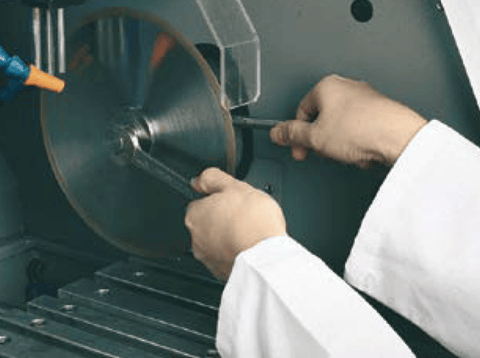

    *1 pc. Diamond cutting Disc 200 mm dia.
    *10 abrasive thin cut-off wheels 200 mm dia.
    *1 lt of Metcool II cooling fluid

For more details of the MICRACUT 202(-AX) High-Speed Precision Cutting Machine, click here.

Compared with MICRACUT 202, MICRACUT 202-AX offers Parallel Cutting along X-Axis.

    Technical Specifications

    Model 202 202-AX
    Disc Diameter, (mm) Ø200 Ø200
    Cutting Capacity, ø (mm) Ø75 Ø75
    Cutting Capacity, # (mm) 50x175  50x175
    Z-Axis Movement Automatic Automatic
    Y-Axis Movement Automatic Automatic
    X-Axis Movement - Automatic
    Z-Axis Range, (mm) 45 45
    Y-Axis Range, (mm) 210 210
    X-Axis Range, (mm) - 60
    X-Axis Resolution, (mm) - 0.014
    Table Feed Speed, (μm/s) 5-5000 5-5000
    Thin Section Grinding Feature Yes Yes
    Table Dimensions, (mm) 365 x 205 (305+60) x 205
    T- Slot, (mm) 12 12

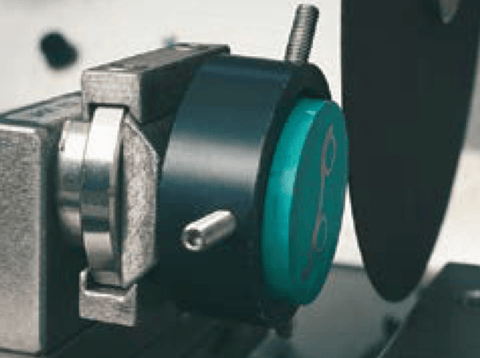

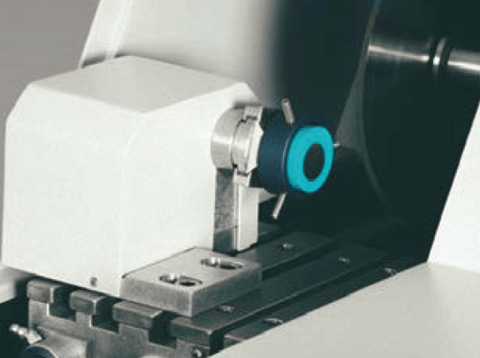

    Rotary Clamping Device Yes Yes
    Pulse Cutting Yes Yes
    Automatic Feed rate Yes Yes
    Cutting Motor Power, (kW) (S1) 1.1 1.1
    Disc Speed, (RPM) 100–5000  100–5000
    Cooling Unit, (lt) 9 (integrated) 9 (integrated)
    Joystick Yes Yes
    HMI Touch Screen, (inch) 7" 7"
    Program Capacity 99 99
    Illumination LED LED
    Laser Yes (Optional) Yes (Optional)
    Dressing During Cutting Operation Yes (Optional) Yes (Optional)
    Motor Drive System Direct Drive Direct Drive
    Dimensions, WxDxH, (cm) 74 x 75 x 64 74 x 75 x 64
    Weight, (kg) 150 150
    Power Supply  230 V, 50/60 Hz, AC.  230 V, 50/60 Hz, AC.

    Accessories:

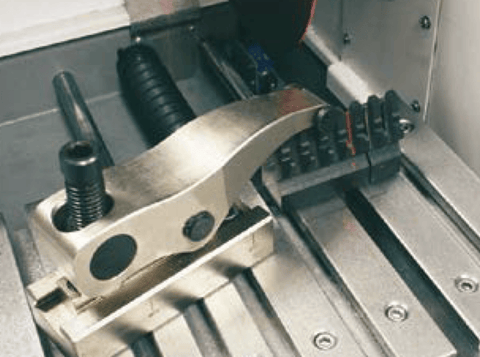

    • Clamping Tools
    • Specimen Vises
    • Spare Part kit
    • Optional Flange Sets
    • Other Accessories

      Consumables:

      • Abrasive Cut-off Wheels for Precision Cutting (Pack of 10)
      • Diamond Cutting Discs (1 pc) for Precision Cutting
      • CBN Cutting Discs (1 pc) for Precision Cutting
      • Cutting Fluid

      For accessories and consumables, please contact us so we can help you choose appropriate products for your needs.


      About Metkon: Since 1993, METKON as a young and dynamic company, has delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".

      MSE Supplies is an authorized distributor for Metkon Instrument Inc.
