MSE PRO Lithium Nickel Manganese Cobalt Oxide, LiNi0.5Mn0.3Co0.2O2 NMC 532 Cathode Powder 500g

  • £18100

Bulk orders? Please contact us for Bulk Quotation.

Qty (Each) Price (Each)
1 - 9 $ 225.00
10 - 19 $ 184.50
20 - 20+ $ 146.25

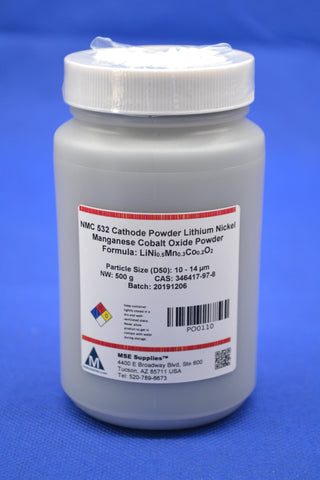

MSE PRO™ Lithium Nickel Manganese Cobalt Oxide, LiNi0.5Mn0.3Co0.2O2 NMC 532 Cathode Powder 500g 10-14um D50

Product No.: PO0110

Package Size: 500g

Specifications:

Appearance: Black powder

Molecular Formula: LiNi0.5Mn0.3Co0.2O2 (Ni:Mn:Co = 5:3:2)

Chemical Name or Material: Lithium Nickel Manganese Cobalt Oxide

Particle sizes:

  • D10: ~ 5 µm
  • D50: 10 - 14 µm
  • D90: ≤ 25 µm

Pressed density: ~ 2.3 g/cm3

pH: ≤ 11.5

BET Specific Surface Area: 0.2 - 0.5 m2/g

 Parameter Specifications (wt.%) Value
Ni+Co+Mn (wt.%) 58.5 ~ 60.5 58.83
Li (wt.%) 7.0 ~7.6 7.42
Ca (wt.%) ≤ 0.0100 0.0021
Cu (wt.%) ≤ 0.0020 0.0006
Fe (wt.%) ≤ 0.0050 0.0017
Na (wt.%) ≤ 0.0300 0.0077



First Discharge Capacity (0.2C, button half open cell):

153 - 158 mAh/g (4.2 - 2.7V)

170 - 175 mAh/g (4.35 - 2.7V)

180 - 185 mAh/g (4.4 - 2.7V)

First discharge efficiency: 85%
