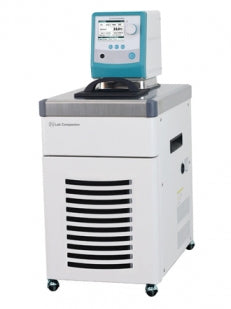

Lab Companion Refrigerated & Heating Bath Circulator (General)
Lab Companion Refrigerated & Heating Bath Circulators (General)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Refrigerated & Heating Bath Circulators (General) Jeio Tech. They are capable of rapid heating and cooling throughout the entire temperature range.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Three point temperature calibration / Automatic tuning / Automatic run.
- Bright VFD display with quick adjustable dial knob. (0.1℃resolution).
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient memory function of up to three frequently set temperature.
- Quick-release front grill for easy cleaning of the condenser.
- RS-232 / USB interface for external control and data collection.
- Complete safety protection system with warning alarms.
- Low fluid level and dry-running, over-temperature, over-current.
- Keypad lock function prevents accidental changes during operation.
Accessories:
- Stainless Steel Cover
- Test Tube Racks
- Spring Wire Racks
- LC GreenBox
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
for temperature range from -25℃ to 150℃
| Model | RW3-0525 | RW3-1025 | RW3-2025 | RW3-3025 | |
|---|---|---|---|---|---|
| Bath volume (L / cu ft) | 5 / 0.2 | 10 / 0.4 | 20 / 0.7 | 30 / 1.1 | |
| Temperature | Working temperature range (℃ / ℉) | -25 to 150 / -13 to 302 | |||
| Temperature stability 1) (±℃ / ℉) | 0.05 / 0.09 | ||||
| Cooling capacity 2) (bath fluid: ethanol) |
at -20℃ (-4℉), W | 140 |
180 |
310 | 465 |
| at 0℃ (+32℉), W | 270 | 360 | 610 | 700 | |
| at +20℃ (+68℉), W | 400 | 560 | 850 | 980 | |
| Refrigerator | 1/3 LBP, R-507 | 1/3 LBP, R-507 | 1/2 LBP, R-404A | 3/4 LBP, R-404A | |
| Pump(bath fluid: water) | Max. pressure | 5.9 PSI (406.8 millibar) | |||
| Max. flow rate | 7.4 gallons / minute (28 liters / minute) | ||||
| Dimension | Bath opening / depth(W×L, D) (mm / inch) |
150×99, 160/ 5.9×3.9, 6.3 |
211×154, 180/ 8.3×6.1, 7.1 |
290×214, 200/ 11.4×8.4, 7.9 |
300×264, 230/ 11.8×10.4, 9 |
| Exterior(W×L×H) (mm / inch) | 308x480x733/ 12.1x18.9x28.9 |
366x532x780/ 14.4x20.9x30.7 |
386x602x825/ 15.2x23.7x32.5 |
446x662x895/ 17.6x26.1x35.2 |
|
| Net weight (kg / lbs) | 38 / 83.8 | 44 / 97 | 60 / 132.2 | 67 / 147.7 | |
| Electrical requirements (230V, 60Hz) | 11A | 11A | 12.5A | 13.5A | |
| Cat. No. | AAH57041K | AAH57051K | AAH57062K | AAH57071K | |
| Electrical requirements (230V, 50Hz) | 11A | 11A | 12.5A | 13.5A | |
| Cat. No. | AAH57045K | AAH57055K | AAH57065K | AAH57075K | |
| Electrical requirements (120V, 60Hz) | 12.6A | 12.6A | |||
| Cat. No. | AAH57043U | AAH57053U | - | - | |
for temperature range from -35℃ to 150℃
| Model | RW3-0535 | RW3-1035 | RW3-2035 | RW3-3035 | |
|---|---|---|---|---|---|
| Bath volume (L / cu ft) | 5 / 0.2 | 10 / 0.4 | 20 / 0.7 | 30 / 1.1 | |
| Temperature | Working temperature range (℃ / ℉) | -35 to 150 / -31 to 302 | |||
| Temperature stability 1) (±℃ / ℉) | 0.05 / 0.09 | ||||
| Cooling capacity 2) (bath fluid: ethanol) |
at -20℃ (-4℉), W | 140 | 180 | 310 | 465 |
| at 0℃ (+32℉), W | 270 | 360 | 610 | 700 | |
| at +20℃ (+68℉), W | 400 | 560 | 850 | 980 | |
| Refrigerator | 1/2 LBP, R-404A | 1/2 LBP, R-404A | 3/4 LBP, R-404A | 1 LBP, R-404A | |
| Pump(bath fluid: water) | Max. pressure | 5.9 PSI (406.8 millibar) | |||
| Max. flow rate | 7.4 gallons / minute (28 liters / minute) | ||||
| Dimension | Bath opening / depth(W×L, D) (mm / inch) |
150×99, 160/ 5.9×3.9, 6.3 |
211×154, 180/ 8.3×6.1, 7.1 |
290×214, 200/ 11.4×8.4, 7.9 |
300×264, 230/ 11.8×10.4, 9 |
| Exterior(W×L×H) (mm / inch) | 308x480x733/ 12.1x18.9x28.9 |
366x532x780/ 14.4x20.9x30.7 |
386x602x825/ 15.2x23.7x32.5 |
446x662x895/ 17.6x26.1x35.2 |
|
| Net weight (kg / lbs) | 38 / 83.8 | 44 / 97 | 60 / 132.2 | 67 / 147.7 | |
| Electrical requirements (230V, 60Hz) | 12.5A | 12.5A | 13.5A | 14.5A | |
| Cat. No. | AAH57141K | AAH57151K | AAH57161K | AAH57171K | |
| Electrical requirements (230V, 50Hz) | 12.5A | 12.5A | 13.5A | 14.5A | |
| Cat. No. | AAH57145K | AAH57155K | AAH57165K | AAH57175K | |
※ Technical data (according to DIN 12876)
※ In case using silicon oil, you need to exchange other material tube (inlet and out late part), such as copper tube, a teflon tube instead of a silicon tube in fitting.
1) Technical data according to DIN 12876. (bath fluid : ethanol at -10℃)
2) The cooling capacity is measured under 230V / 60Hz electrical condition.
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
