Lab Companion Gel Electrophoresis Systems

SKU: AAAJ6011

  • £33600
  • Save £1900


Lab Companion Gel Electrophoresis Systems

Buy Lab Companion products from MSE Supplies at the best value.

MSE Supplies offers Lab Companion Electrophoresis Systems from Jeio Tech. We offer three different systems for different sized gels, which can satisfy your need for a more detailed DNA/RNA analysis.

Country of Origin: Made in South Korea

Manufacturer: Jeio Tech

Main Features:

  • The electrophoresis system is a molded transparent polycarbonate product with superior shock-resistance, transparent, and durability to acrylic adhesives.
  • Detachable electrode assembly allows for easy cleaning and maintenance.
  • Each unit comes with one banana cable. Black & red cables are coupled together and can be inserted or extracted at the same time.
  • UV-transparent gel trays allow for viewing bands on the UV-transilluminator without removing gel tray.
  • Comb-setting grooves in gel trays or caster prevents sliding of combs.
  • Adjustable gel length.
  • Flat, uniformly thick gels are formed by built in level maker on the gel tray and level bubble on the gel castor.

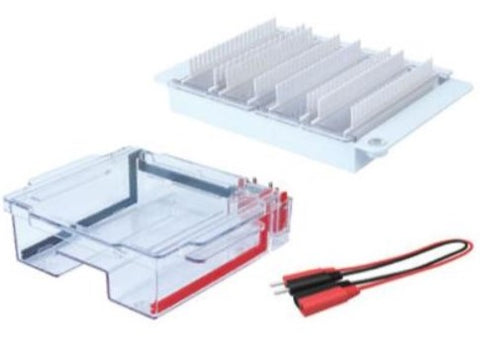

Accessories:

  • Electrophoresis unit
  • Gel caster unit
  • Electrode assembly
  • Double-sided Comb: AAAJ6011 (.5L) comes with 1 each 1mm thick 27- and 40-well combs, AAAJ6021 (1L) and AAAJ6031 (1.8L) come with 2 each 1.5mm thick 20- and 31-well combs, 1mm thick 20- and 31-well combs, 1.5mm thick 16- and 20-well combs, 1mm thick 16- and 20-well combs, 1.5mm thick 25- and 34-well combs, and 1mm thick 25- and 34-well combs.

For accessories, please contact us so we can help you choose appropriate products for your needs.

    Technical Specifications:

    SKU#

    AAAJ6011

    AAAJ6021

    AAAJ6031

    Buffer capacity (L)

    0.5

    1.0

    1.8

    Dimension

    Electrophoresis tank (inch)

    8.6x5.3x2.8

    8.6x8.4x2.8

    15.2x8.4x2.8

    Gel caster (W×D×H) (inch)

    10x3.4x0.7

    6.6x10.4x1.2

    6.6x10.4x1.2

    Gel tray (WxDxH)  (inch)

    3.2x3.2x0.7

    7.1x4.0x1.1

    7.1x8.1x1.1

    3.2x2.2x0.7

    Comb (W×D) (inch)

    8.9x1.8

    6.2x1.8

    6.2x1.8

    Net weight (lbs)

    0.86

    1.32

     2.05

    Material

    Tank, Lid, Gel tray, Gel caster

    PC (polycarbonate)

    Comb

    ABS (acrylonitrile-butadienestyrene)

    Electrode

    Platinum wire


    About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.

    MSE Supplies is an authorized distributor for Jeio Tech.
