The KITTEC CBF and SQF model series for glass fusing are a further development of the successful CB range, with which KITTEC was one of Europe’s first companies to launch a top-loader range in 1979.
Fusing is a very old form of glass processing. The glass is heated from above in order to fuse it with other parts or clay objects.

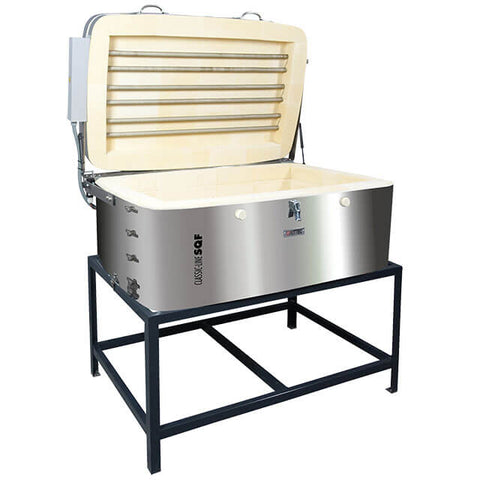

KITTEC SQF 180 S Classic-Line SQF electric fusing top-loader Kilns, up to 1,000°C
SKU: SQF 180 S
KITTEC SQF 180 S Classic-Line SQF electric fusing top-loader Kilns, up to 1,000°C
Buy KITTEC furnaces from MSE Supplies with the best price.
Specifications:
| Technical data | SQF 180 S |
| Design type | Top-loader |
| Energy supply | Electric |
| Max. temperature [°C] | 1000 |
| Power [kW] | 8,4 |
| Voltage [V] | 400 3N~ |
| Current [A] | 3x13 CEE16 |
| Volume [l] | 183 |
| Firing chamber diameter [mm] | - |
| Firing chamber width [mm] | 1015 |
| Firing chamber height [mm] | 305 |
| Firing chamber depth [mm] | 560 |
| External width [mm] | 1320 |
| External depth [mm] | 960 |
| External height including base [mm] | 880 |
| External height with inverted base [mm] | - |
| Weight [kg] | 120 |
| Form | rectangular |
