IKA SP set-1 Viscometers (40°C) - MSE Supplies LLC

IKA SP Set-1 for Viscometers

  • £21900
  • Save £2700


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025000319

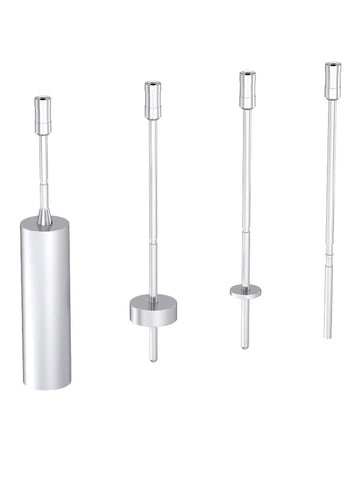

The standard spindle set SP set-1 includes four spindles (SP1, SP2, SP3, SP4). It is particularly suitable for viscosity determination in combination with the rotary viscometers ROTAVISC lo-vi Complete or ROTAVISC lo-vi Advanced.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA SP Set-1 Viscometers

Spindle geometry Cylinder
Connection Thread M2.5 LH
Spindle length 115 mm
Sample volume 500 ml
Sample container: 600mL beaker low
Working temperature max. 300 °C
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 15 mPa.s
Max. FSR match ROTAVISC lo-vi 6000000 mPa.s
Min. FSR match ROTAVISC me-vi 100 mPa.s
Max. FSR match ROTAVISC me-vi 64000000 mPa.s
Min. FSR match ROTAVISC hi-vi I 200 mPa.s
Max. FSR match ROTAVISC hi-vi I 128000000 mPa.s
Min. FSR match ROTAVISC hi-vi II 800 mPa.s
Max. FSR match ROTAVISC hi-vi II 512000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 160 x 82 x 270 mm
Weight 0.449 kg
Permissible ambient temperature 5 - 40 °C
