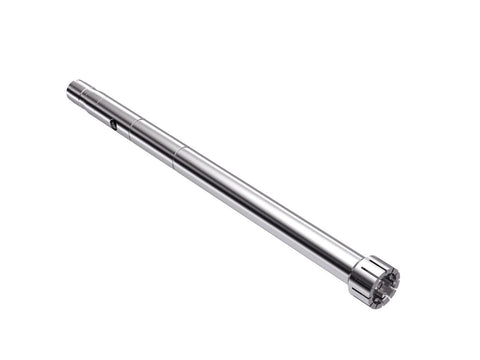

IKA S 25KD-LR-25F Dispersing Tool
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025007322
The S 25 KD - LR - 25 F dispersing tool was specially developed to use with the IKA laboratory reactors. It is slightly longer than the standard dispersing tools, allowing for a deeper tool immersion within the reactors and the processing of even lower minimum sample volumes. In addition, this tool can be used in conjunction with vacuum conditions of up to 50 mbar.
The F tool is able to achieve an even finer ultimate particle size compared to the G tools.
Tool disassembly for cleaning and maintenance is made simpler with this new design.
Compatible with: T 25 digital, T 25 easy clean digital, T 25 easy clean control
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA S 25KD-LR-25F Dispersing Tool
| Volume range (H2O) | 0.1 - 2 L |
| Stator diameter | 25 mm |
| Rotor diameter | 18 mm |
| Gap between rotor and stator | 0.5 mm |
| allowable Speed max. | 25000 rpm |
| Circumferential speed max. | 23.6 m/s |
| Immersion depth | 40 - 220 mm |
| Shaft length | 267 mm |
| Material in contact with medium | FFPM, PTFE, AISI316L |
| pH range | 2 - 13 |
| Working temperature max. | 150 °C |
| Sterilization methods | wet chemical |
| Vacuum | 100 mbar |
| Ultimate fineness, suspensions | 5 - 25 µm |
| Ultimate fineness, emulsions | 1 - 5 µm |
| Weight | 0.404 kg |
