IKA RC 2 Lite Temperature Control Chiller

SKU: 0025007939

  • £2,58400
  • Save £13600



IKA RC 2 Lite Temperature Control Chiller

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025007939

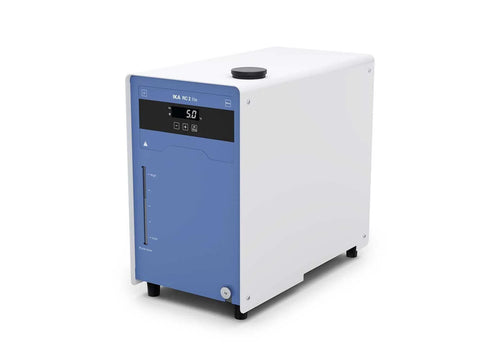

Compact recirculating chiller with powerful 400 W cooling capacity, designed for simple cooling tasks down to -10 °C.

The RC 2 lite is the perfect peripheral device for the cooling of rotary evaporators, reflux condensers or as a cooling source for devices that dissipate heat with the help of a heat exchanger (e. g. double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils).

The easily accessible and easy-to-clean mesh filter (stainless steel) ensure a consistently high cooling capacity over years. Thanks to the low filling volume of just one liter, the RC 2 lite is able to reach low temperatures particularly fast. The large working volume of 2.5 liters enables a high number of external applications without refill of liquids. The filling level in the reservoir can be clearly observed through the large, illuminated sight glass.

The powerful pressure and suction pump enables the simultanous operation of several small applications as well as external applications in open bath vessels in combination with a level controller. Thanks to the natural refrigerant R290, the RC 2 lite is remarkably environmentally friendly and well prepared for the future.

Scope of delivery

  • RC 2 lite
  • Olive for DN 8 hoses (2 pcs.)

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA RC 2 Lite Temperature Control

Appliance type Recirculating chiller
Class designation acc. DIN 12876 I
Identification according to DIN 12876 NFL
Cooling agent R290
Cooling agent quantity 70 g
Cooling agent pressure max. 21 bar
Cooling capacity (@20°C) 400 W
Cooling capacity (@10°C) 350 W
Cooling capacity (@0°C) 250 W
Cooling capacity (@-10°C) 140 W
Working temperature -10 - room temp. °C
Operating temperature min. -10 °C
Operating temperature max. (with external heating) 70 °C
Temperature display yes
Temperature control PT1000
Working temperature sensor PT1000
Working temperature display LED
Temperature stability DIN 12876 ±0.5 K
Display resolution 0.1 K
Set temperature resolution ±0.1 K
Filling volume 1 - 3.5 l
Pump type Pressure- / suction pump
Pump pressure max. (0 liters discharge flow) 0.35 bar
Pressure pump (suction side) (0 liter flow) 0.15 bar
Flow rate max. (0 bar back pressure) 18 l/min
Pump connection M16x1
Permissible ON time 100 %
Dimensions (W x H x D) 225 x 385 x 430 mm
Weight 24.5 kg
Permissible ambient temperature 5 - 32 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface yes
Voltage 115 V
Frequency 50/60 Hz
Power input 250 W
