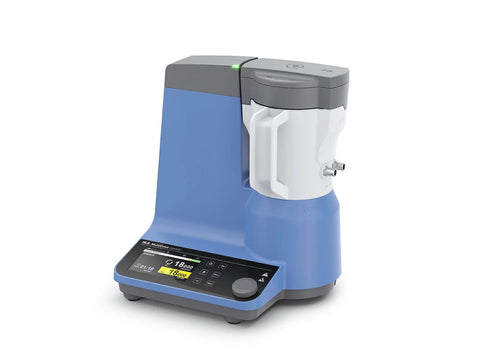

IKA MultiDrive Control Mills (20000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025002644
Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. MultiDrive control mixes, grinds and is also fitted with a dispersion vessel and a disposable tube. There is a USB interface available for easy actuation and documentation respectively.
High performance
Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.
Interval operation
The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending.
Integrated cooling
A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate.
TFT-display
A clear TFT-display guarantees user-friendly operation.
Temperature measurement
MultiDrive control offers temperature measurement and vessel recognition using RFID. A temperature limit can be set for temperature-sensitive materials, or for specific planned reactions to protect against overheating.
Weighing function
The weighing function is also integrated into the user-friendly workflow of the IKA MultiDrive control. Weighing is performed before crushing using the same mixing cup, so that no transfer of contents is required.

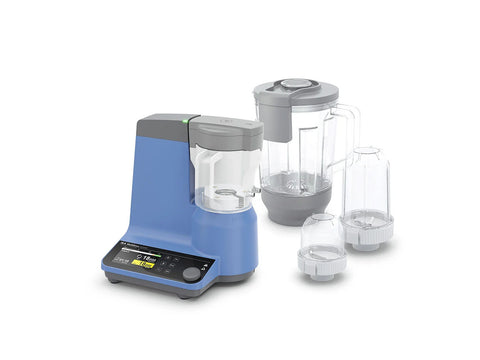

Variety of vessels (accessory)
MultiDrive provides the right vessel for each grinding task.
Vessels don't belong to the scope of delivery.
Scope of delivery
- IKA MultiDrive control
- Socket wrench
- Disassembly tool 1
- Disassembly tool 2
- Cleaning brush
- USB Cable - USB A to Micro-B, 2 m
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MultiDrive Control Mills (20000 rpm)
| Process type | batch |
| Operating principle | cutting/impact/blending/dispersing |
| Motor rating input | 1000 W |
| Motor rating output | 800 W |
| Speed range | 3000 - 20000 rpm |
| Speed deviation | ±5 % |
| Power-ON time | 5 min |
| Power-OFF time | 10 min |
| Motor principle | Brushless DC |
| Display | TFT |
| RFID reader/writer unit | yes |
| Temperature display | yes |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±1 K |
| Temperature limit min. | -50 °C |
| Temperature limit max. | 120 °C |
| Monitoring maintain time | yes |
| Weighing function | yes |
| Weighing range | 5 - 4000 g |
| Weighing resolution | 1 g |
| Load capacity weighing function max. | 4 kg |
| Weighing accuracy | ±(0.3%+2) g |
| Vessels detection | yes |
| Ramp programming | yes |
| Dimensions (W x H x D) | 300 x 350 x 250 mm |
| Weight | 8.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 31 |
| USB interface | yes |
| Bluetooth interface | yes |
| Voltage | 100 - 120 V |
| Frequency | 50/60 Hz |
| Power input | 1000 W |
