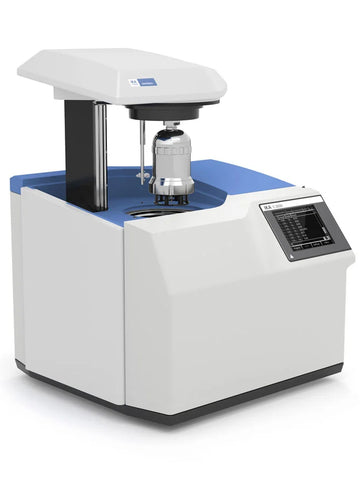

IKA C 3000 Isoperibol Package 1/12 Plus Calorimeters
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0010005544
The IKA C 3000 isoperibol calorimeter is the technologically advanced successor of our C 2000 model, with great new features such as faster sample runs, a spherically shaped decomposition vessel for faster heat transfer and a convenient touch screen for easy operation. Both the oxygen filling and the entire water handling processes are fully automated.
Its measurements and calculations of net calorific value are according to ISO 1928, ASTM D4809, ASTM D5865, ASTM 240 and GB T213. Areas of application include the power and cement industry where accurate analyses are vital.
- Easy handling by touch screen operation or a standard USB mouse
- Two different starting temperatures to choose from (22°C, 30°C)
- Automatic ignition, automatic water filling and draining, automatic oxygen filling
- Several interfaces: Ethernet, RS 232, USB, SD card slot
- Six temperature sensors to monitor all temperatures allowing best analyses
- Spherically shaped decomposition vessel for better pressure stability and faster heat transfer
- Easy sample preparation due to new upside down crucible holder technology
- Can be operated with a chiller (e.g. RC 2 basic)
Our C 3000 isoperibol Package 1/12 plus was especially created for those customers requiring an overall solution.
- C 3000 measuring cell
- C 6012 decomposition vessel, halogen resistant
- RC 2 basic recirculation chiller
- Oxygen regulator (to reduce the oxygen bottle pressure to 30 bar)
- Pellet press
- Wear parts and consumables for up to 500 tests
The halogen resistant decomposition vessel C 6012 included with the C 3000 isoperibol Package 1/12 plus is equipped with the unique-to-IKA catalytic active inner surface. It supports the chemical reactions inside the vessel, resulting in a higher recovery rate for halogens and sulfur.
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA C 3000 Isoperibol Package 1/12 Plus Calorimeters
|Measuring range max.||40000 J|
|Measuring mode dynamic 22°C||yes|
|Measuring mode isoperibol 22°C||yes|
|Measuring mode dynamic 30°C||yes|
|Measuring mode isoperibol 30°C||yes|
|Reproducibility dynamic (1g benzoic acid NBS39i)||0.15 %RSD|
|Reproducibility isoperibol (1g benzoic acid NBS39i)||0.05 %RSD|
|Working temperature||22 - 30 °C|
|Temperature measurement resolution||0.0001 K|
|Cooling medium temperature||12 - 27 °C|
|Cooling medium permissible operating pressure||1.5 bar|
|Cooling medium||tap water|
|Type of cooling||flow|
|Chiller||RC 2 basic|
|Flow rate||60 - 70 l/h|
|Rec. flow rate at 18°C||60 l/h|
|Oxygen operating pressure max.||40 bar|
|Interface ext. keyboard||yes|
|Decomposition vessel C 6010||yes|
|Decomposition vessel C 6012||yes|
|Analysis according to ASTM D240||yes|
|Analysis according to ASTM D4809||yes|
|Analysis according to ASTM D5865||yes|
|Analysis according to ISO 1928||yes|
|Analysis according to GB T213||yes|
|Dimensions (W x H x D)||500 x 425 x 450 mm|
|Permissible ambient temperature||20 - 30 °C|
|Permissible relative humidity||80 %|
|Protection class according to DIN EN 60529||IP 20|
|RS 232 interface||yes|
|Voltage||220 - 240 V|
|Power input||1700 W|
