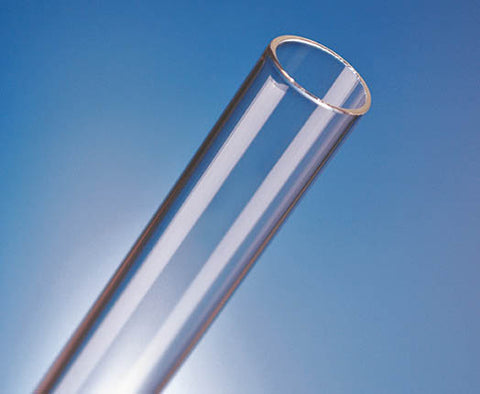

Hilgenberg Round Soda Lime Glass Capillaries (Length > 120 mm), Pk of 1000
SKU: 1413812
Hilgenberg Round Soda Lime Glass Capillaries (Length > 120 mm), Pk of 1000
Buy Hilgenberg high-precision glass products from MSE Supplies at the best value.
From extremely thin- to extremely thick-walled capillaries
The walls of our ultra-thin-walled capillaries are extremely thin in relation to the capillary diameter, so thin that they can be mechanically deformed to a certain extent. The ultra-thin capillaries also boast only the slightest of optical flaws and very low absorption for a broad radiation spectrum. This makes them very useful when it comes to the formation of optical measuring cells, for example.
With our exceptionally thick-walled glass tubes, our portfolio now includes a special product that boasts larger wall thicknesses than the standard. This means that wall thicknesses of up to 15 mm are possible with a relatively small diameter. The tubes are drawn directly from the melt and produced according to customer requirements. The large wall thicknesses allow for particularly high internal pressures and are therefore suitable for the manufacture of reaction and pressure vessels.
Capillaries made from soda-lime glass
- Length from 120 mm
| SKU# | Outer Ø (mm) | Inner Ø (mm) | Wall thickness (mm) | Length (mm) |
| 1413812 | 0.75 | 0.6 | 0.075 | 120 |
| 1413813 | 0.8 | 0.64 | 0.08 | 120 |
| 1413815 | 0.9 | 0.72 | 0.09 | 120 |
| 1413817 | 1 | 0.8 | 0.1 | 120 |
| 1413821 | 1.2 | 0.96 | 0.12 | 120 |
| 1415009 | 0.6 | 0.48 | 0.06 | 150 |
| 1415015 | 0.9 | 0.72 | 0.09 | 150 |
| 1415017 | 1 | 0.8 | 0.1 | 150 |
| 1415021 | 1.2 | 0.96 | 0.12 | 150 |
| 1415025 | 1.4 | 1.12 | 0.14 | 150 |
| 1415037 | 2 | 1.6 | 0.2 | 150 |
| 1415405 | 0.4 | 0.32 | 0.04 | 160 |
| 1415407 | 0.5 | 0.4 | 0.05 | 160 |
| 1416817 | 1 | 0.8 | 0.1 | 200 |
| 1416824 | 1.35 | 1.08 | 0.135 | 200 |
| 1417415 | 0.9 | 0.72 | 0.09 | 230 |
MSE Supplies provides a wide range of technical glass products. Contact us for more details.
