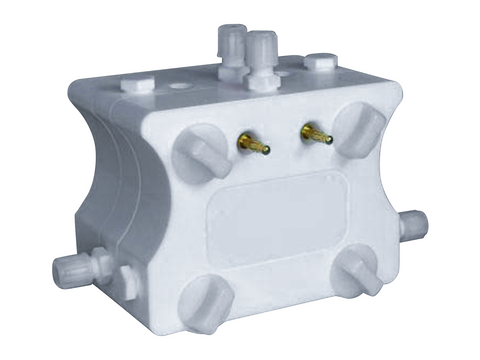

Gaskatel Electrochemical Test Cell ElyFlow Ready to Use PTFE

Electrochemical test cell ElyFlow PTFE, ready for use

SKU: 83400-v03

pH-range: pH -2 to 16
Electrolyte volume: 25 ml
Sample size: 6,4 cm x 7 cm
Active Area: 10 cm2
Counter electrode: Nickel (80178), MMO (80182)
Heating element: 70 W
Temperature: max. 100 °C

Voltammetric cell optimized for electrolyte circuit.

ElyFlow is optimized for electrolyte circuit.

This test cell is suitable for all flat materials!
Measurement error sources like IR drop, curvature of field lines or boundary effects caused by the sealing are minimized.
Haber-Luggin-capillary drilled on the side with fixed distance to the working electrode.

ElyFlow has a gas feed of the working electrode, therefore ElyFlow is very well applicable for measurements with gas diffusion electrodes.
An auxiliary analyte compartment can be used to separate anolyte and catholyte. This provides the possibility of investigations on membranes or separators.

Package:

• 1 x Test cell ElyFlow PTFE

• 1 x Counter electrode MMO (80182)

• 1 x Counter electrode Nickel (80178)

• 2 x Test lead red (89017)

• 2 x Test lead black (89019)

• 2 x Connection coupling adapter red (89037)

• 2 x Connection coupling adapter black (89038)

• 1 x Hexagon socket spanner 6 x125 mm 6okt. (83011)

• 1 x Manual
