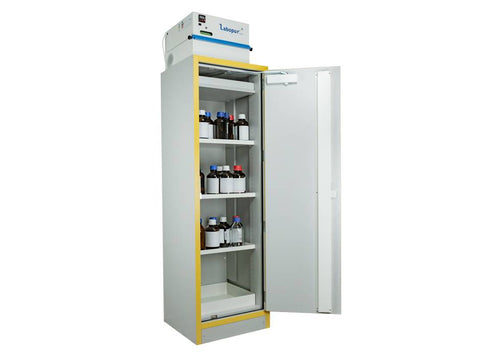

Ecosafe 1- Door Tall Safety Cabinet Type 30 with Filtration
SKU: AF34
Ecosafe 1- Door Tall Safety Cabinet Type 30 with Filtration
ECOSAFE is the first Swiss supplier of safety products that offers the widest range of the world in this field, from storage (with our safety storage cabinets) to manipulation of chemicals (with our ductless fume hoods).
ECOSAFE has been specializing in the handling and storage of chemicals in industry, laboratories and universities for over 40 years.
Advantages:
- 30-minute fire resistant and made in France
- EN 14470-1 and FM 6050 compliant
- Storage of flammables
- Draft standard EN 17242
- Tested and approved according to FM 6050
- Normalized labelling provided with the equipment
- Available in 2 models : glass doors or full doors
- Pedestal area under-driveable by a forklift by removing panel
- Fan in compliance with CE specifications
- Active coal filters adsorption capacity and filtration system certified NF X 15-211
- No modification of building's structure required
- Easy and aesthetic installation
- Lighting control allowing to survey the proper working of the fan
- Front control window to see immediately the filter
- To be equiped with an activated carbon filter tested to standard NF X 15-211
- Stop 99,97% of the particles with a diameter bigger than 0.3 µm
- Easy replacement of the active coal filter
Technical Specifications:
| Model | AF34 |
| Compliance | EN 14470-1 FM 6050, CE, NF X 15-211 |
| Cabinet materials | Melamine wood structure |
| Doors color | light grey RAL 7035 |
| Number of doors | 2 |
| Doors type | swing doors |
| Hinges | right |
| Door closure | self-closing |
| Openings diameter (mm) | 100 |
| Number of compartments | 1 |
| Shelves | 3 |
| Containment sump | 1 |
| Retention capacity (L) | 20 |
| External dimensions HxWxD (mm) | 2210 x 605 x 550 |
| Internal dimensions HxWxD (mm) | 1581 x 491 x 419 |
| Shipping dimensions HxWxD (mm) | 2410 x 1200 x 800 |
| Load capacity | 30 |
| Storage capacity (L) | 130 |
| Electrical power (W) | 20 |
| Sound power of the fan dB(A) | 43.00 |
| Weight (kg) | 132.00 |
