Diamond Epitaxial Wafer for Diodes

MSE Supplies offers Diamond Epitaxial Wafer with either p-type or n-type doping for various applications. It has extremely high current density and voltage compared to the widely used silicon. The devices made with diamond can operate in harsh environments like high temperature and radiation. These wafers could also easily handle higher voltage and reduce energy losses by a factor of 10 compared to silicon. Diamond has been investigated as the potential material for the compact power converters for automobiles. It can be used in various applications, including power electronics, nuclear, spatial, quantum, etc.

Specification:

Diamond Substrate
Dimension 4 mm x 4 mm
Thickness 0.5 mm
Orientation <100>
Type Ib
Epi Layer 1
Thickness 2 μm (1 kV) or 6 μm (3 kV)
Type intrinsic diamond
Epi Layer 2
Thickness ~500 nm
Type p++ conductive diamond

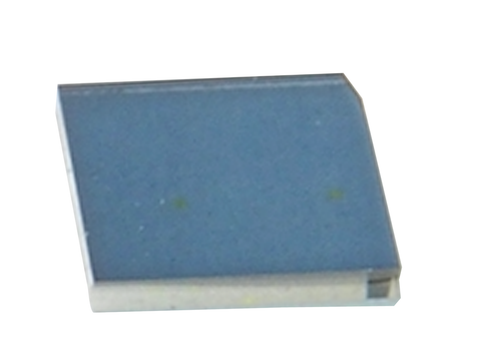

*Please note that actual products might be different from the picture.

Customization:

Customized Diamond Epitaxial Wafer can be made to meet customer's particular requirements and specifications. Please contact our team to discuss your requirements and get a quote.

References:

1. Tallaire, A., Kasu, M., Ueda, K., & Makimoto, T. (2008). Origin of growth defects in CVD diamond epitaxial films. Diamond and Related Materials17(1), 60-65.

2. Kamo, M., Yurimoto, H., & Sato, Y. (1988). Epitaxial growth of diamond on diamond substrate by plasma assisted CVD. Applied Surface Science33, 553-560.
